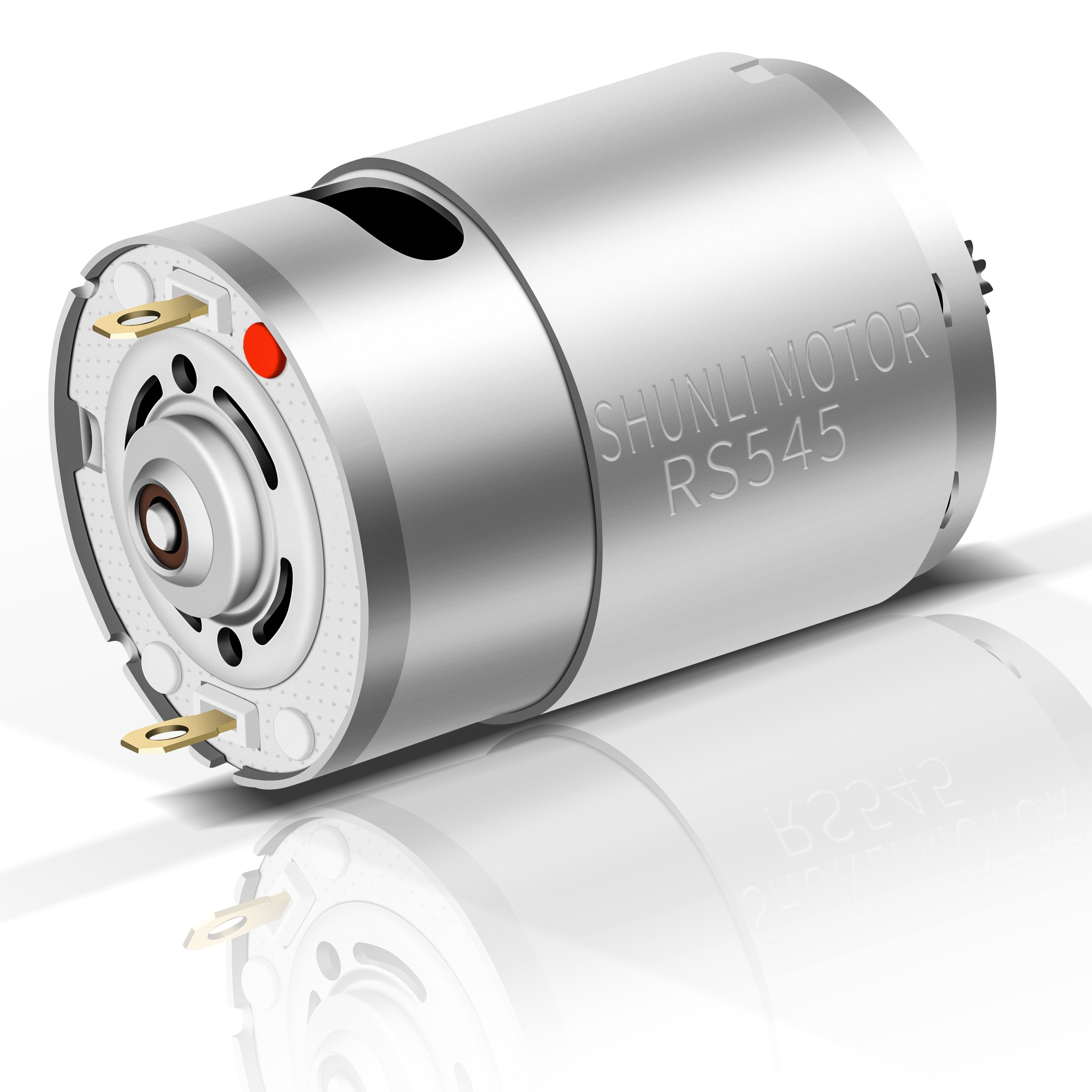

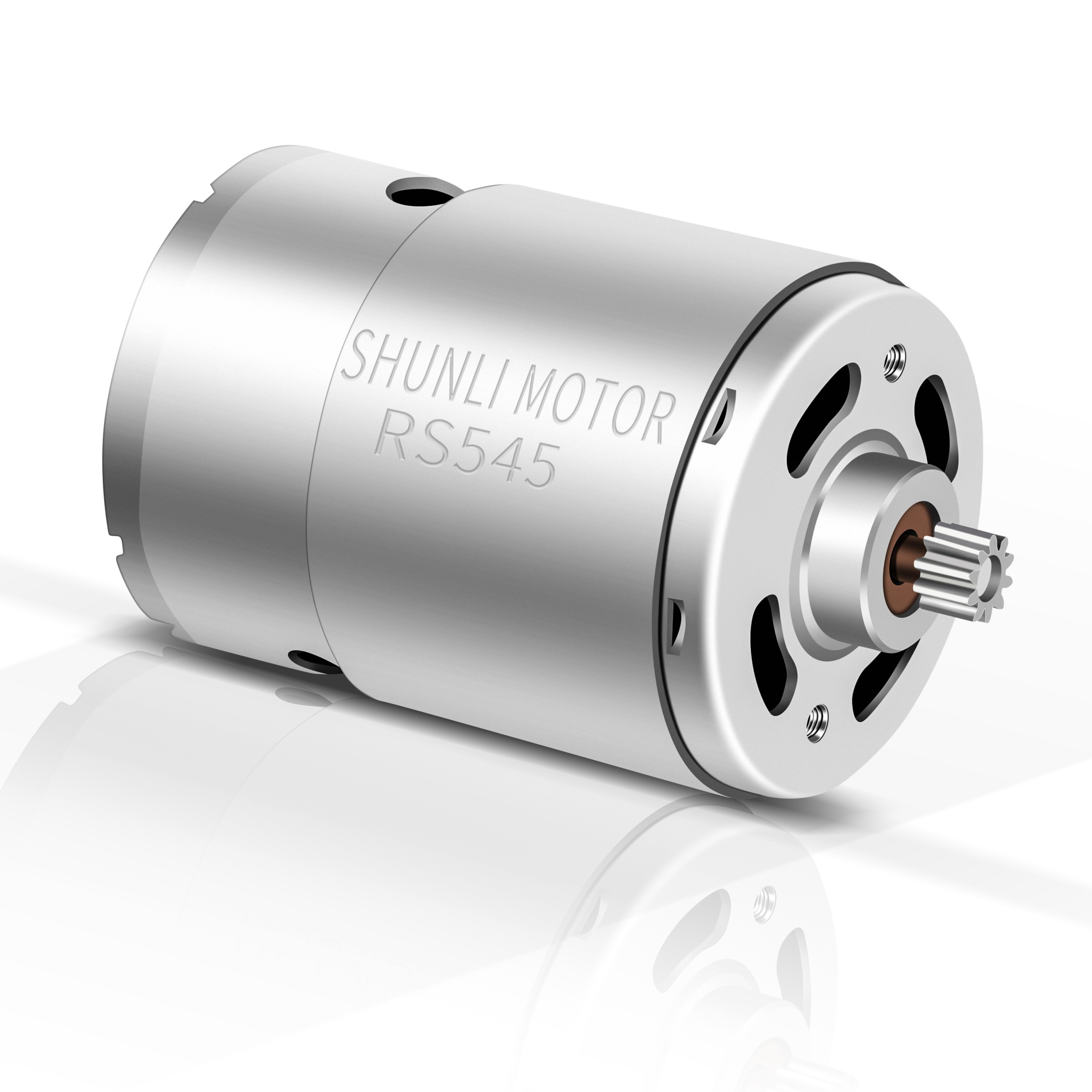

6V 12V 18V DC Motor RS 550 545 555 High RPM Speed DC Motor 15000RPM

1 / 5

6V 12V 18V DC Motor RS 550 545 555 High RPM Speed DC Motor 15000RPM

Send Inquiry

Product Description

Application

6V 12V 18V DC Motor RS 550 545 555 High RPM Speed DC Motor 30000RPM

Product Details

⚙️ Motor Customized Specification Available

PMDC MOTOR Technical Data
Model		Rated Voltage(V)		No-Load		Rated
		Operating Range	Nominal	Speed	Current	Speed	Current	Torque	Power
		Operating Range	Nominal	RPM	A	RPM	A	mN.m / gf.cm	W
RS-550H	23128R	6.0~24.0	24VDC	4500	0.1	3932	0.39	25.7 / 262	10.6
RS-550H	6034	6.0~12.0	12VDC	16000	1.12	13613	4.96	25.6 / 261.3	40.36
RS-555H	3540	6.0~12.0	12VDC	7800	0.3	6708	1.84	21.9 / 223.4	15.35
RS-555H	23100	6.0~24.0	24VDC	7000	0.14	6004	0.77	19.2 / 195.8	12.09

------ RS - 545 A

Frequently Asked Questions

💬 What is the voltage range of these DC motors?

The RS-545, RS-550, and RS-555 DC motors support a wide operating voltage range, typically from 6.0V to 24.0V DC. They are optimized for common voltages such as 6V, 12V, and 18V.

💬 What are the common applications for the RS 550, 545, and 555 motors?

These high RPM DC motors are widely used in power tools (like cordless drills), household appliances, smart home devices, personal care products, automotive electronics, and DIY custom robotics.

💬 Can these motors be customized?

Yes. Motor specifications such as the rated operating voltage, speed range, current consumption, torque rating, and output shaft configurations can be customized based on your technical requirements.

💬 What is the maximum speed these motors can achieve?

Depending on the specific configuration and voltage input, these motors can achieve high speeds ranging from 4,500 RPM to 30,000 RPM under no-load conditions.

💬 How do I choose between the RS-550, RS-545, and RS-555 models?

The choice depends on your space constraints and power needs. The RS-550 typically offers higher power and torque outputs, while the RS-545 and RS-555 provide different combinations of speed and efficiency configurations to suit specific torque requirements.

Product Detail

6V 12V 18V DC Motor RS 550 545 555 High RPM Speed DC Motor 15000RPM

Product Description
