775 Dc Motor for Power Tools Low Price Motor 12v 24v Dc Gear Motor

1 / 5

775 Dc Motor for Power Tools Low Price Motor 12v 24v Dc Gear Motor

Send Inquiry

Product Description

775 dc motor for power tools low price motor 12v 24v dc motor

Product Details

Motor Customized Specification.

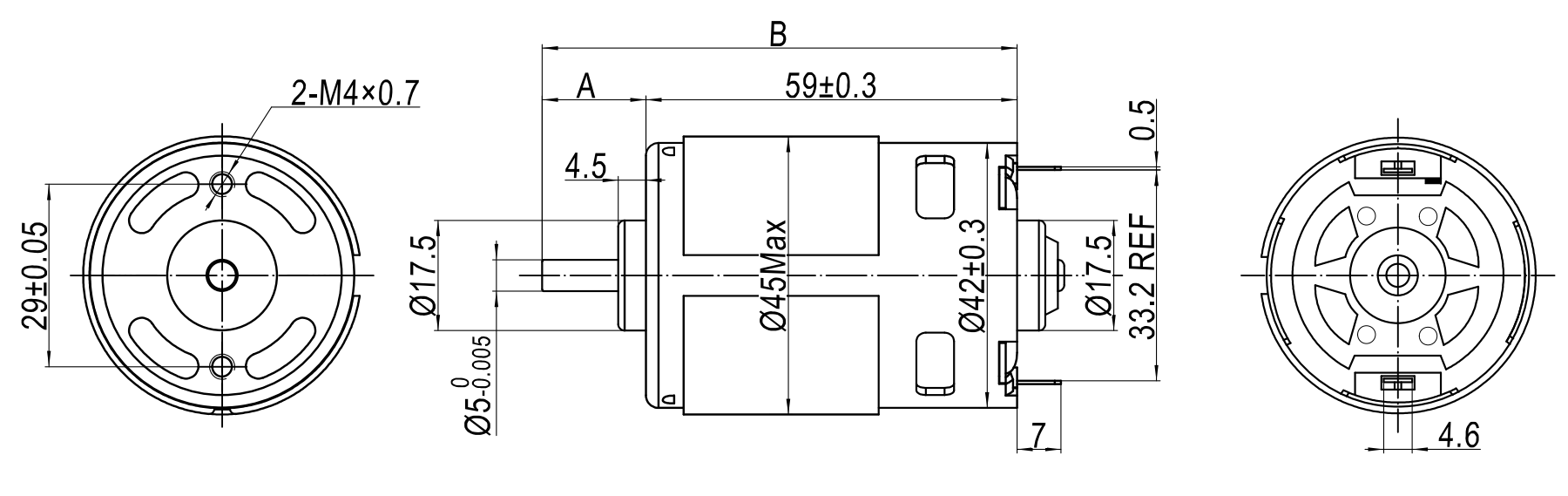

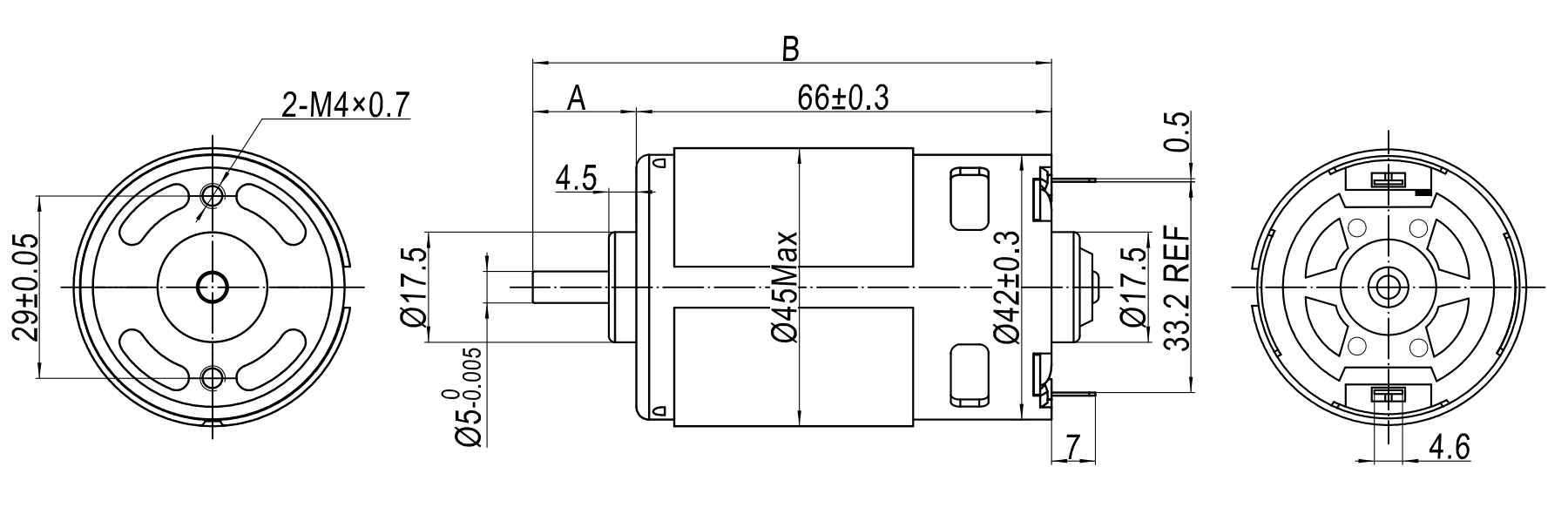

Reference Drawing

------ RS - 755 H

------ RS - 775 H

The length of shaft can be customized.

PMDC MOTOR Technical Data
Model	Rated Voltage (V)		No-Load		Rated				Stall
Model	Operating Range	Nominal	Speed (RPM)	Current (A)	Speed (RPM)	Current (A)	Torque (mN.m / gf.cm)	Power (W)	Current (A)	Torque (mN.m / gf.cm)
RS-770H 8523R	6.0~12.0	12 VDC	15000	2.2	13177	15.91	81 / 826.2	111.8	115	666.9 / 6802
RS-775H 25110R	6.0~24.0	24 VDC	3478	0.15	2925	0.75	44.4 / 452.9	13.35	4.07	245.7 / 2506

FAQ

Are you a trading company or a manufacturer?

We are a factory. We specialize in micro DC motors and DC gear motors with over 14 years of industry experience.

What is the payment term for a new customer?

We can arrange secure online transaction terms for new clients, supporting major credit/debit cards such as Visa and MasterCard, as well as PayPal and TT bank transfers.

I can't find a suitable motor on the website, can you customize the motor for me?

Yes, we provide full custom design and manufacturing services tailored to our customer's specific technical requirements.

Do you have certificates for your motors?

Yes, our motors are fully certified with CE, FCC, ISO, and other standard certifications. Additional certificate requests can be accommodated upon application.

How do you manage Quality Control?

We employ professional inspection staff at every stage of the production process. Completed motors undergo rigorous testing using advanced equipment, including Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Test Machines, and Noise Testers.

Can the motor shaft length be customized?

Yes, the length, shape, and style of the motor shaft can be fully customized according to your design specifications.

Product Detail

775 Dc Motor for Power Tools Low Price Motor 12v 24v Dc Gear Motor

Product Description

775 dc motor for power tools low price motor 12v 24v dc motor
