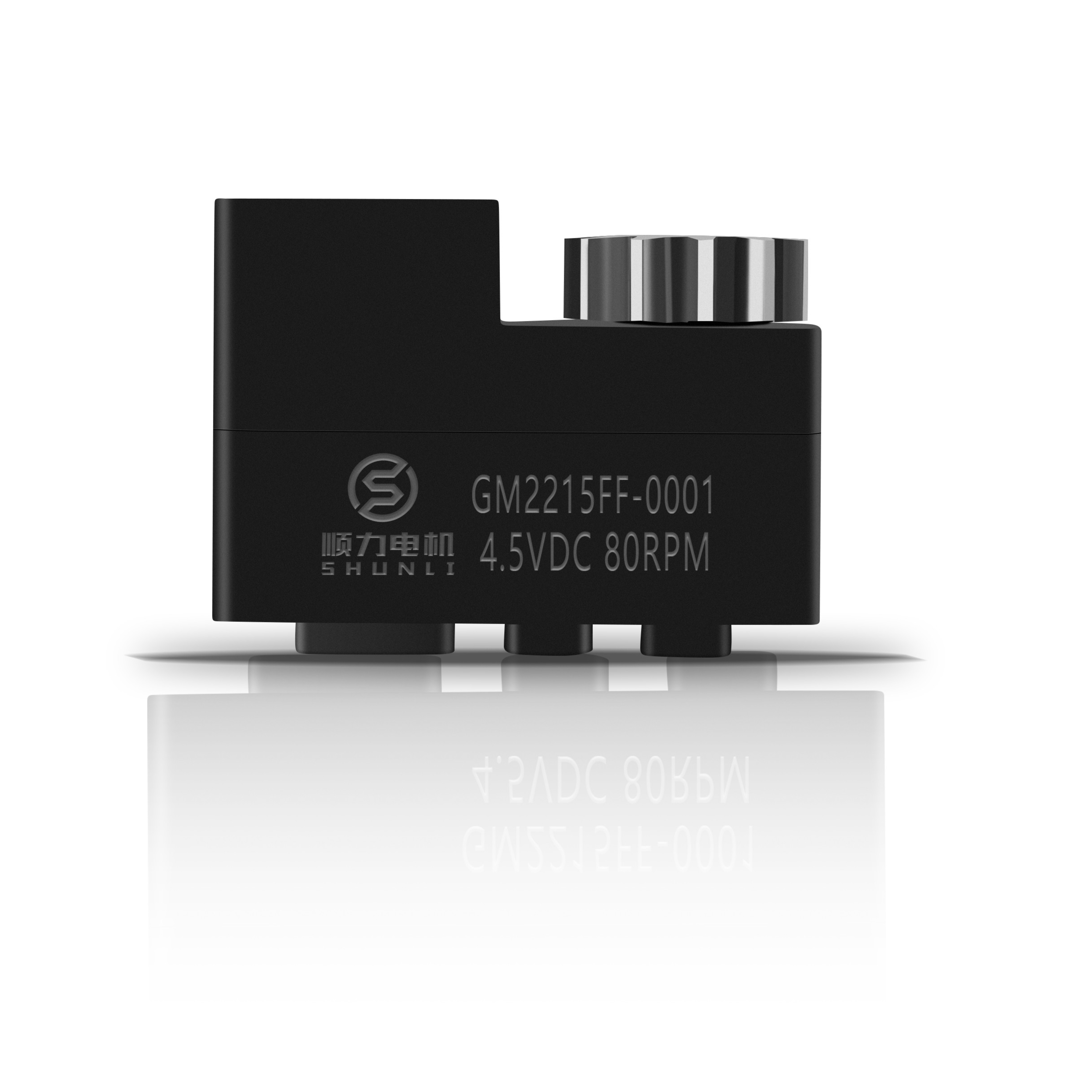

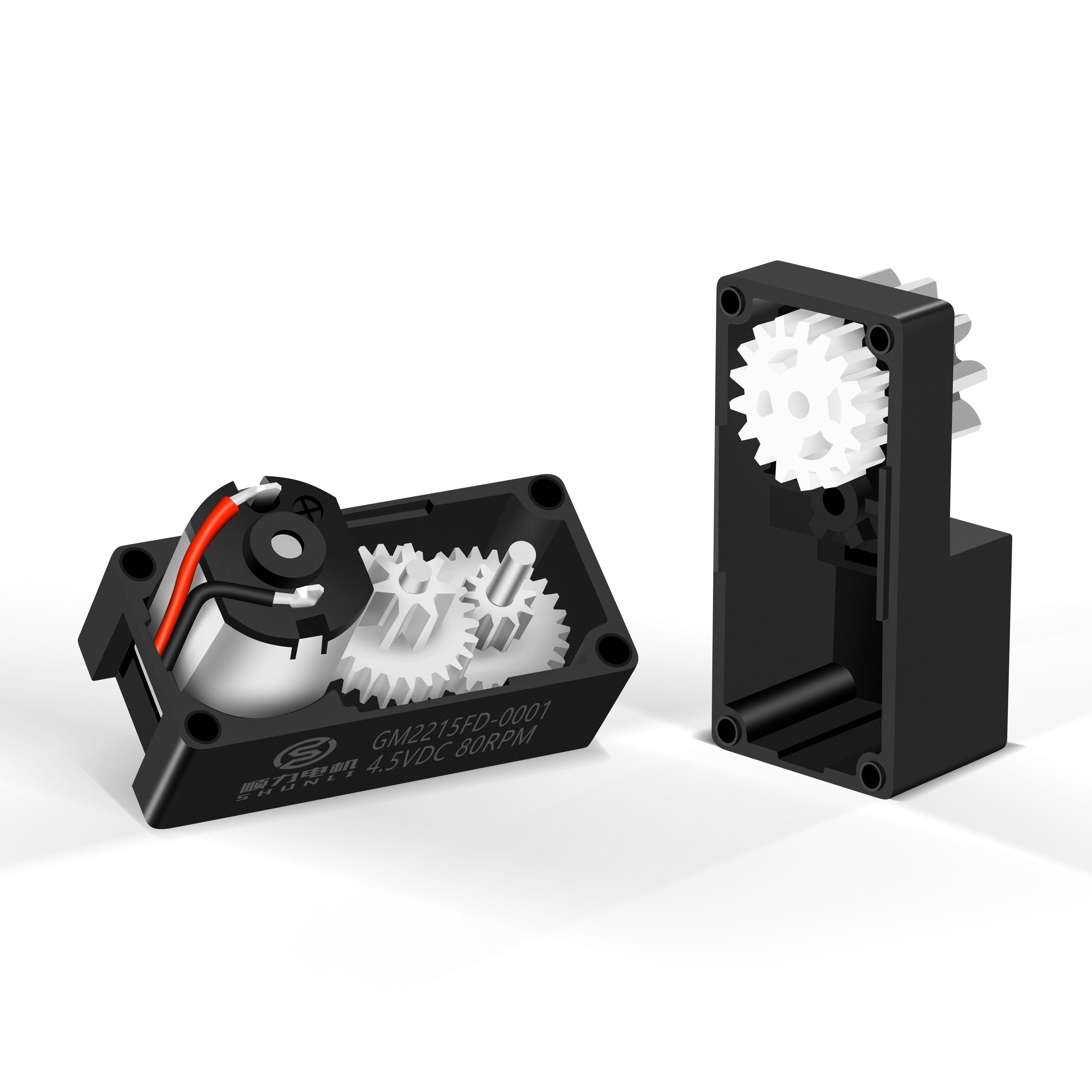

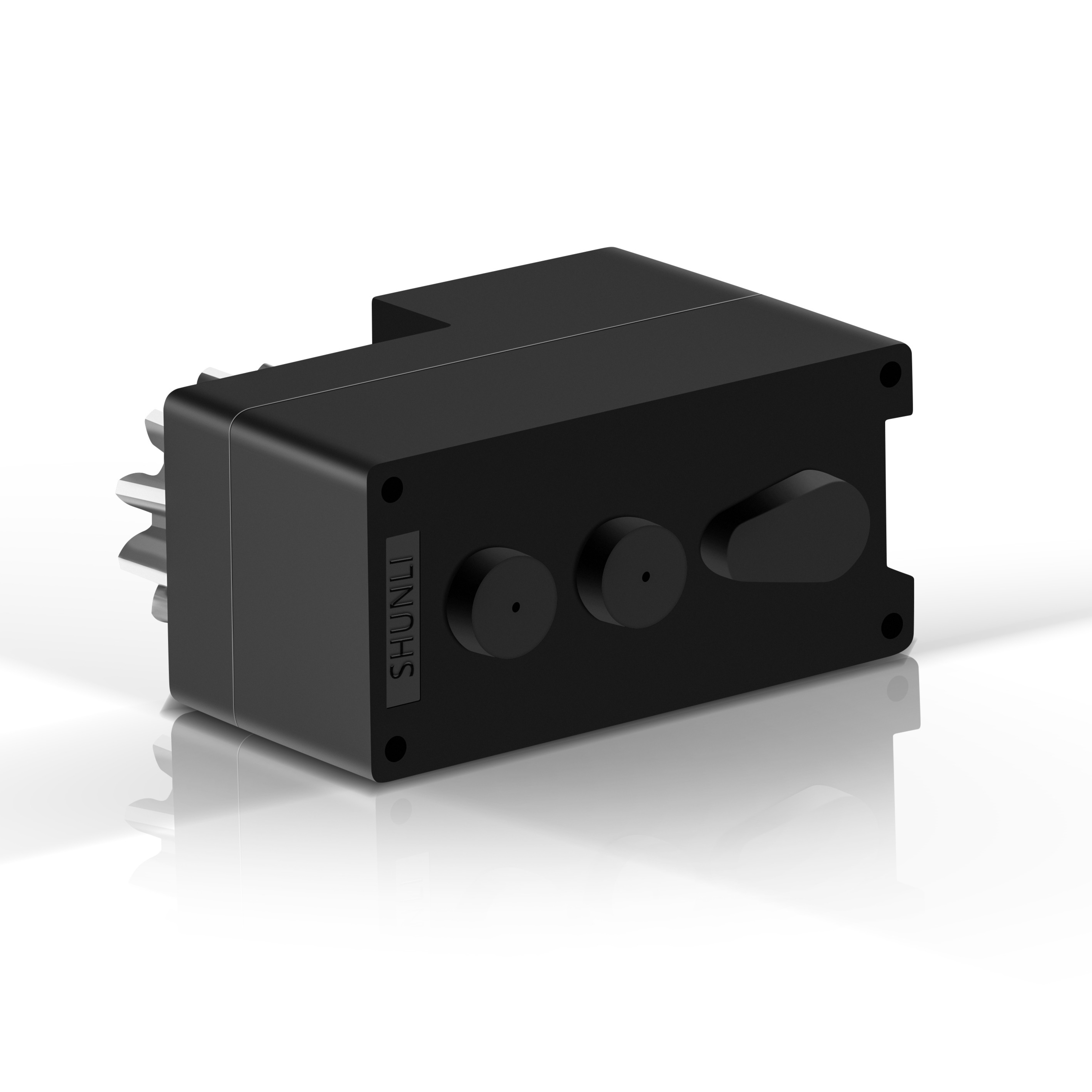

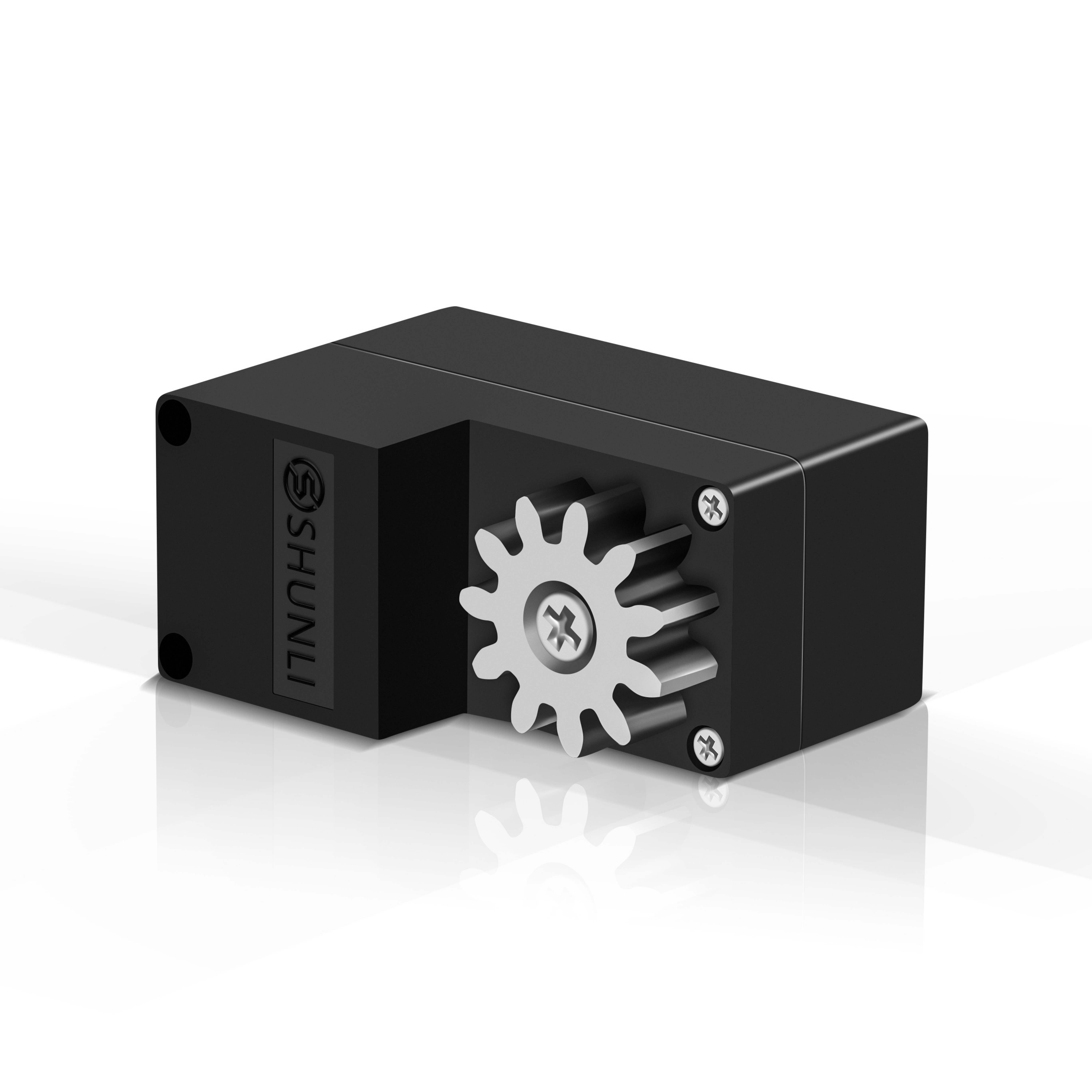

4.5v Dc Gear Motor for Electric Lock Low Rpm 60rpm Shunli Permanent Magnet Brush Customized 30-100RPM

Product Description

Promotion
Promotion Banner
Product Categories
Product Description
Specification
Gearbox Technical Data
Ratio 241k
Max. Rated Torque 1.5~2.0 Kgf.cm
Max. Gear Broken Torque 4~5 Kgf.cm
Gearbox Efficiency 45%~60%
Gearmotor Technical Data
Gearmotor Model Ratio Rated Voltage (V) No-Load Rated Stall
Speed Current Speed Current Torque Current Torque
RPM mA RPM mA N.m / Kgf.cm mA N.m / Kgf.cm
GM2215FMN20-241K 1 : 241 4.5 VDC 43 ≤ 50 34 ≤ 120 25 / 250 ≤ 350 0.15 / 1.5
58 ≤ 65 50 ≤ 130 28 / 280 ≤ 680 0.18 / 1.8
68 75 56 ≤ 140 30 / 300 ≤ 750 0.2 / 2.0
4.5v Dc Gear Motor for Electric Lock Low Rpm 60rpm Permanent Magnet Brush Customized 30-100RPM
PMDC MOTOR Technical Data
PMDC MOTOR Model Rated Voltage (V) No-Load Rated Stall
Speed Current Speed Current Torque Current Torque
RPM mA RPM mA mN.m / gf.cm mA mN.m / gf.cm
SL-N20 04510500 4.5 VDC 10500 ≤ 30 8250 ≤ 80 0.2 / 2.0 ≤ 300 1.05 / 10.5
04514000 4.5 VDC 14000 ≤ 40 12000 ≤ 130 0.25 / 2.5 ≤ 680 1.5 / 15
04516500 4.5 VDC 16500 ≤ 50 13500 ≤ 160 0.25 / 2.5 ≤ 750 1.8 / 18
Application
Applications Chart
Application Fields
Customer Evaluation
Customer Feedback Evaluation
Certifications
Product Certifications
Why Choose Us
1. Company Experience
Manufacturing Experience
We are a factory specialized in producing motors for more than 14 years. Our professional R&D team and mature management will bring you a pleasant purchasing experience.
2. Quality Control
Quality Control Process
In order to confirm quality, every step from incoming materials to final shipment is carefully checked. Quality is the basis of our development.
Frequently Asked Questions
Are you a trading company or a manufacturer?
We are a factory. We have specialized in micro DC motors and DC gear motors for more than 14 years.
What is the payment term for new customers?
We can establish an online Assurance Order for our new customers, allowing online payments with Master Card, Visa, etc. Customers can also pay via PayPal, TT, and other methods.
I cannot find a suitable motor on your website, can you customize the motor for me?
Yes, we can customize a suitable motor according to our customer's specific requirements.
Do you have certificates for the motors?
Yes, we have CE, FCC, ISO, etc. If you require other certifications, we can apply for them on your behalf.
How is your Quality Control?
We have professional inspection personnel assigned to every stage of the production line. Once assembly is complete, we use comprehensive testing machinery to check the motor. This includes Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Test Machines, and Noise Testers, etc.
