Zonix Motor
Zonix Motor
Motor Customized Specification, Please Contact Us.
| PIN NO. | PIN Arrangement |
|---|---|
| 1 | VCC |
| 2 | FG |
| 3 | CW/CCW |
| 4 | GND |
| 5 | PWM |

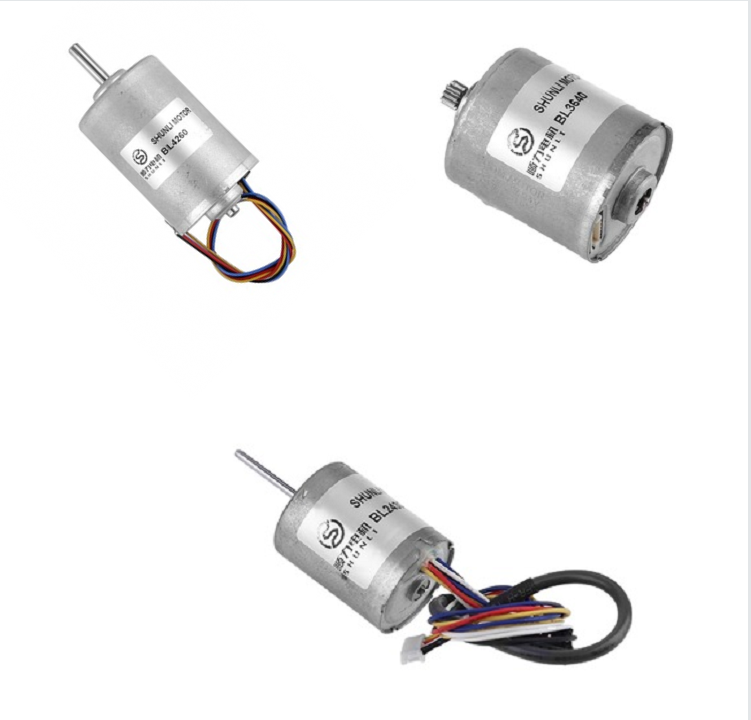

These micro permanent magnet brushless DC motors are designed to operate efficiently across multiple reference voltages, including 12V, 18V, and 24V configurations, depending on your system requirements.
The motor series offers several standard reference speed options, including 1500 RPM, 3000 RPM, and 4000 RPM, to accommodate various torque and speed requirements.
They are highly versatile and widely used in home appliances like washing machines and fans, hobby applications such as RC planes, industrial/DIY technical tools, robotics, and small liquid pumps.
The motor features a 5-pin termination layout: Pin 1 (VCC) for power, Pin 2 (FG) for speed feedback signal, Pin 3 (CW/CCW) for direction control, Pin 4 (GND) for ground, and Pin 5 (PWM) for pulse-width modulation speed control.
Yes. Customizations can be requested for technical specifications, dimensions, and shaft designs to meet specific application requirements.
