Zonix Motor
Zonix Motor
| Model | Voltage | No-load | Load | Stall | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Working Voltage | Rated voltage | Speed | Current | Speed | Current | Torque | Power output | Stall torque | Current | |||
| V | rpm | A | rpm | A | N.m | Kg.m | W | N.m | Kg.m | A | ||
| SGP01S-A130-14150-120 | 3-12.0V | 4.5 | 100 | 0.2 | 87 | 0.5 | 0.066 | 0.675 | 0.4 | 0.265 | 2.7 | 1.25 |
| SGP01S-A130-18100-220 | 3-12.0V | 3.0 | 50 | 0.2 | 40 | 0.3 | 0.120 | 1.233 | 0.6 | 0.393 | 4.003 | 2.15 |
This motor operates on a wide working voltage range of 3.0V to 12.0V DC. The optimal rated voltage varies depending on the specific model, typically set at 3.0V or 4.5V for standard configurations.
It is primarily designed for DIY smart toy cars, robotics projects, obstacle avoidance vehicles, educational physics kits, and small mechanical transmission systems that require compact size and reliable torque output.
Depending on the configuration, the motor offers a load speed range between 40 rpm and 87 rpm. It maintains stable power output and current levels, making it highly efficient for standard toy car operations.

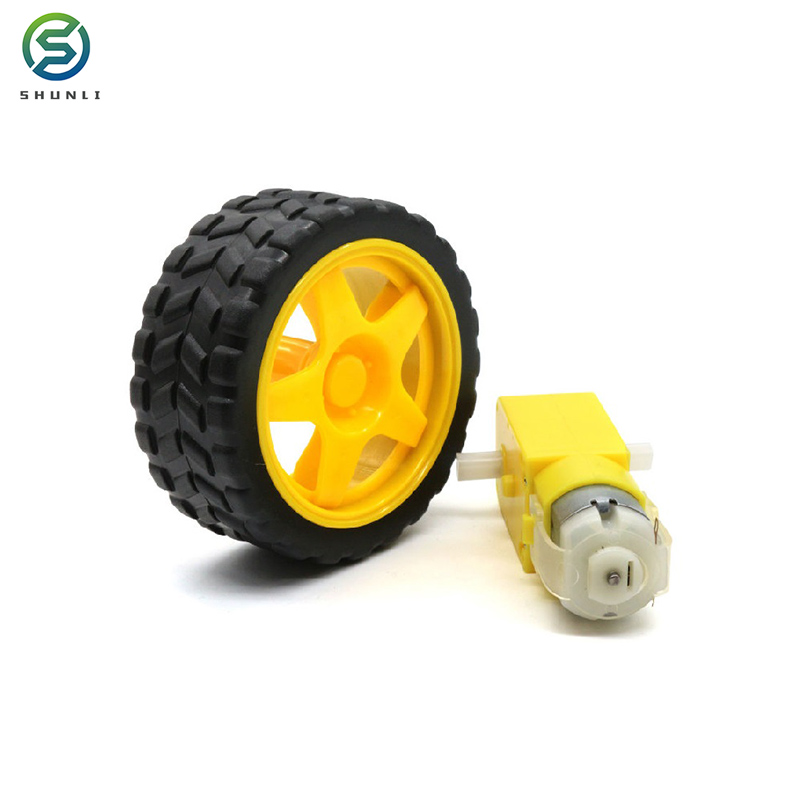

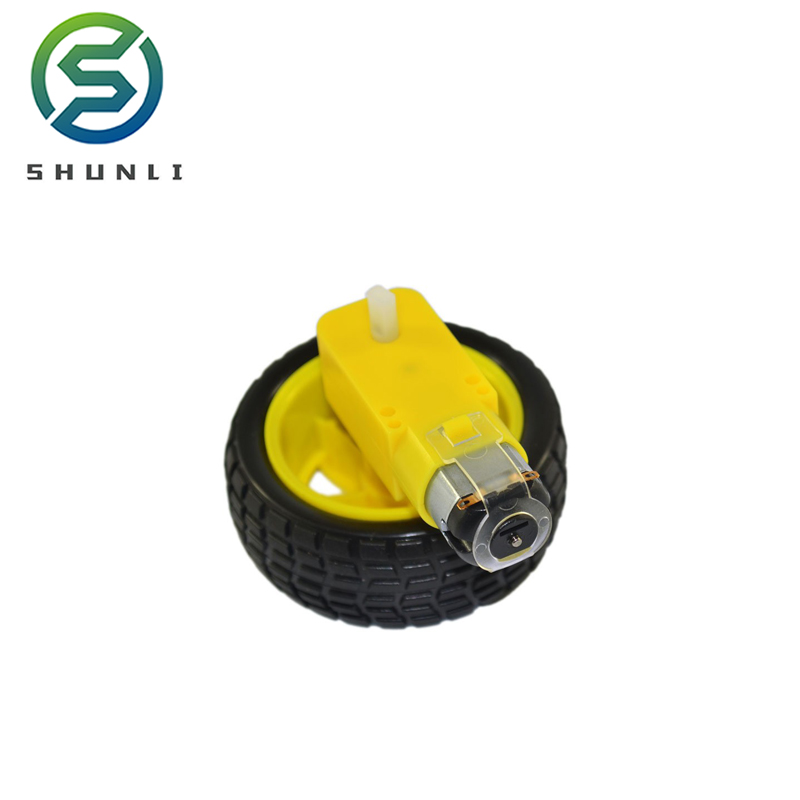

Yes, this product listing is a combination set of the yellow DC gear motor along with high-quality matching plastic wheels, ensuring direct compatibility and easy assembly right out of the box.
Yes, this is a standard brushed DC motor. You can easily change the direction of rotation (clockwise or counter-clockwise) by reversing the polarity of the positive and negative power connections to the motor.
