Zonix Motor
Zonix Motor
Motor Customized Specification, Please Contact Us.
| Gearmotor Model | Ratio | Rated Voltage (V) | No-Load | Rated | Stall | ||||
|---|---|---|---|---|---|---|---|---|---|
| Speed | Current | Speed | Current | Torque | Current | Torque | |||
| RPM | mA | RPM | mA | N.m / Kgf.cm | mA | N.m / Kgf.cm | |||
| GMP16M030-100K | 1 : 100 | 3.7 VDC | 100 | ≤ 80 | 72 | ≤ 300 | 0.03 / 0.3 | ≤ 700 | 0.11 / 1.1 |
| GMP16M050-300K | 1 : 300 | 3.7 VDC | 50 | ≤ 200 | 40 | ≤ 650 | 0.1 / 1.0 | ≤ 3000 | 0.55 / 5.5 |
| Number of stages | 4 | 5 | 6 | 7 |
|---|---|---|---|---|
| Ratio | 25K / 30K / 35K / 42K | 70K / 85K / 100K / 119K | 143K / 169K / 200K / 239K / 285K | 300K / 400K / 568K / 800K |

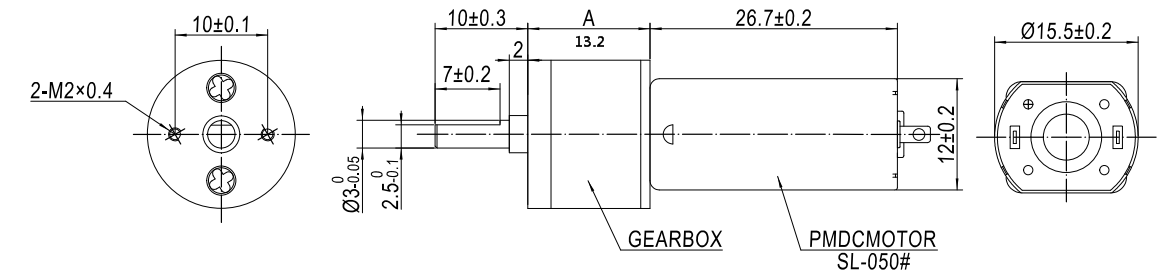

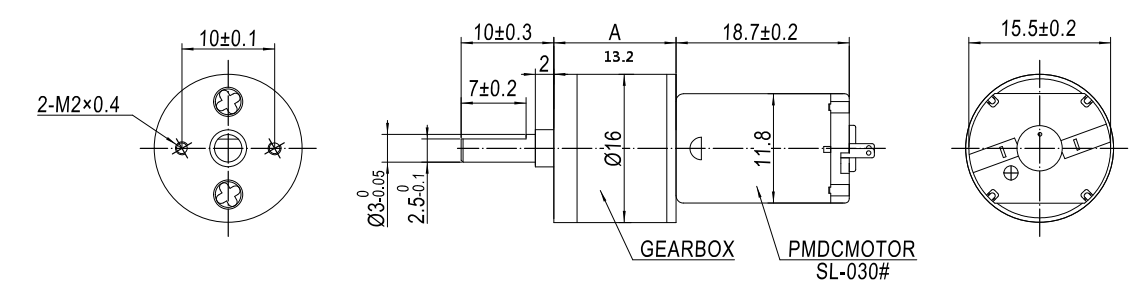

| Gearbox Length "A" (mm) | 13.2 | 14.1 | 15.6 | 17.0 |
| Max. Rated Torque | 0.6 Kgf.cm | 1.0 Kgf.cm | 1.5 Kgf.cm | 2.0 Kgf.cm |
| Max. Gear Broke Torque | 1.5 Kgf.cm | 3.0 Kgf.cm | 4.0 Kgf.cm | 5.0 Kgf.cm |
| Gearbox Efficiency | 60% ~ 70% | 55% ~ 60% | 50% ~ 55% | 45% ~ 50% |
We are a factory specializing in producing micro DC motors for more than 14 years. Our professional R&D team and mature management system ensure a premium and reliable supply experience.
To guarantee exceptional quality, every step of the process—from raw material receipt to final shipment—is carefully inspected. Consistent quality is the foundation of our development.
We are an verified gold seller in possession of high industry credibility.
100% on-time delivery rate guarantees that your products will arrive in a timely manner.
Standard samples are produced within 2 weeks; custom samples within 3 weeks.
Highly responsive customer service support: all inquiries will be answered within 2 hours.
