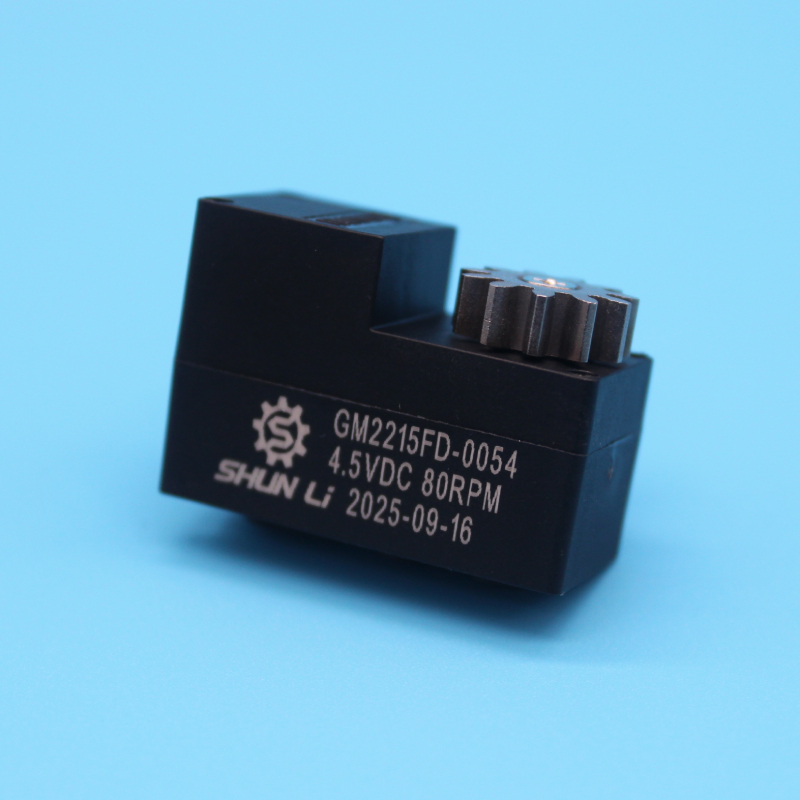

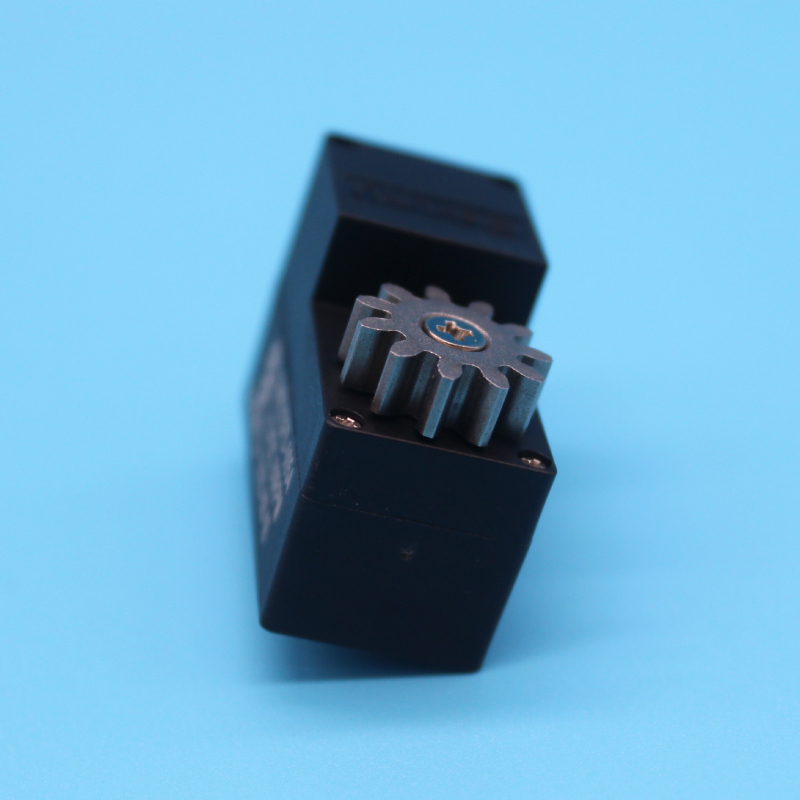

Shunli Motor 2215 Smart Lock Motor Steering Gear Automatic Door Lock Micro Motor Gearbox Reduction of Smart Lock

Product Description

Smart Lock Motor Banner
2215 Smart Lock Motor Steering Gear Automatic Door Lock Micro Motor Gearbox Reduction Motor
📋 Product Description

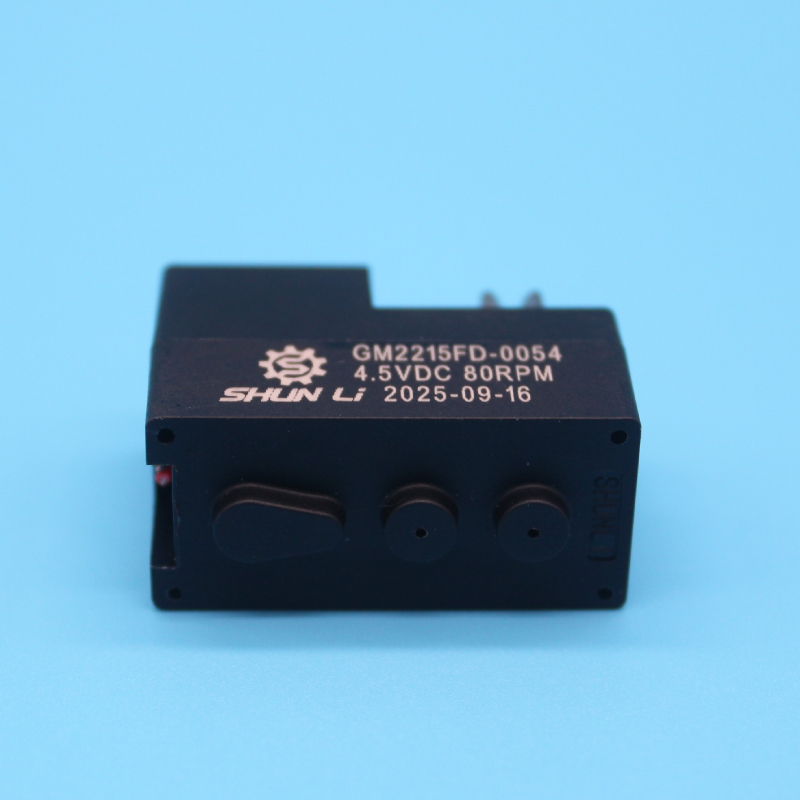

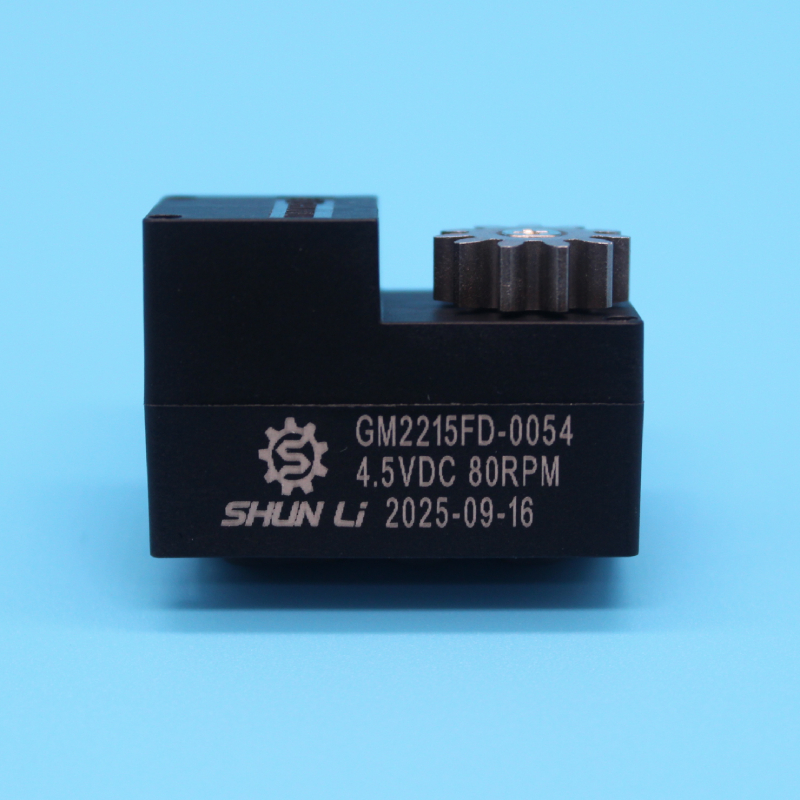

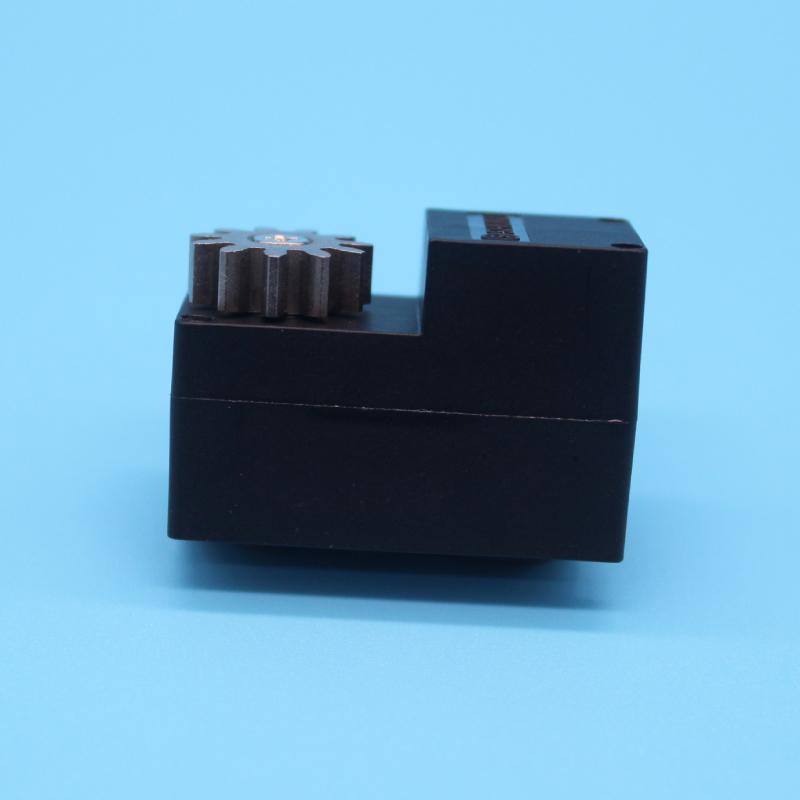

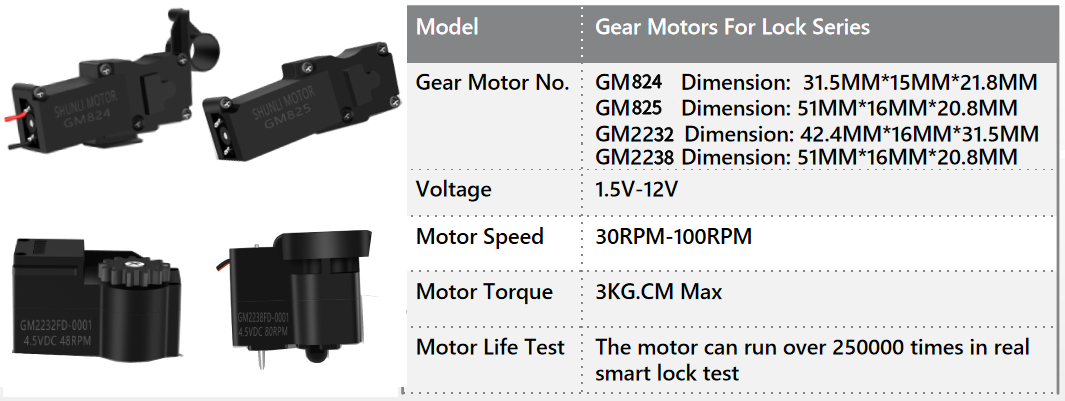

Smart Lock Micro Motor Product Image
Motor Customized Specification, Please Contact Us.
Reference Drawings

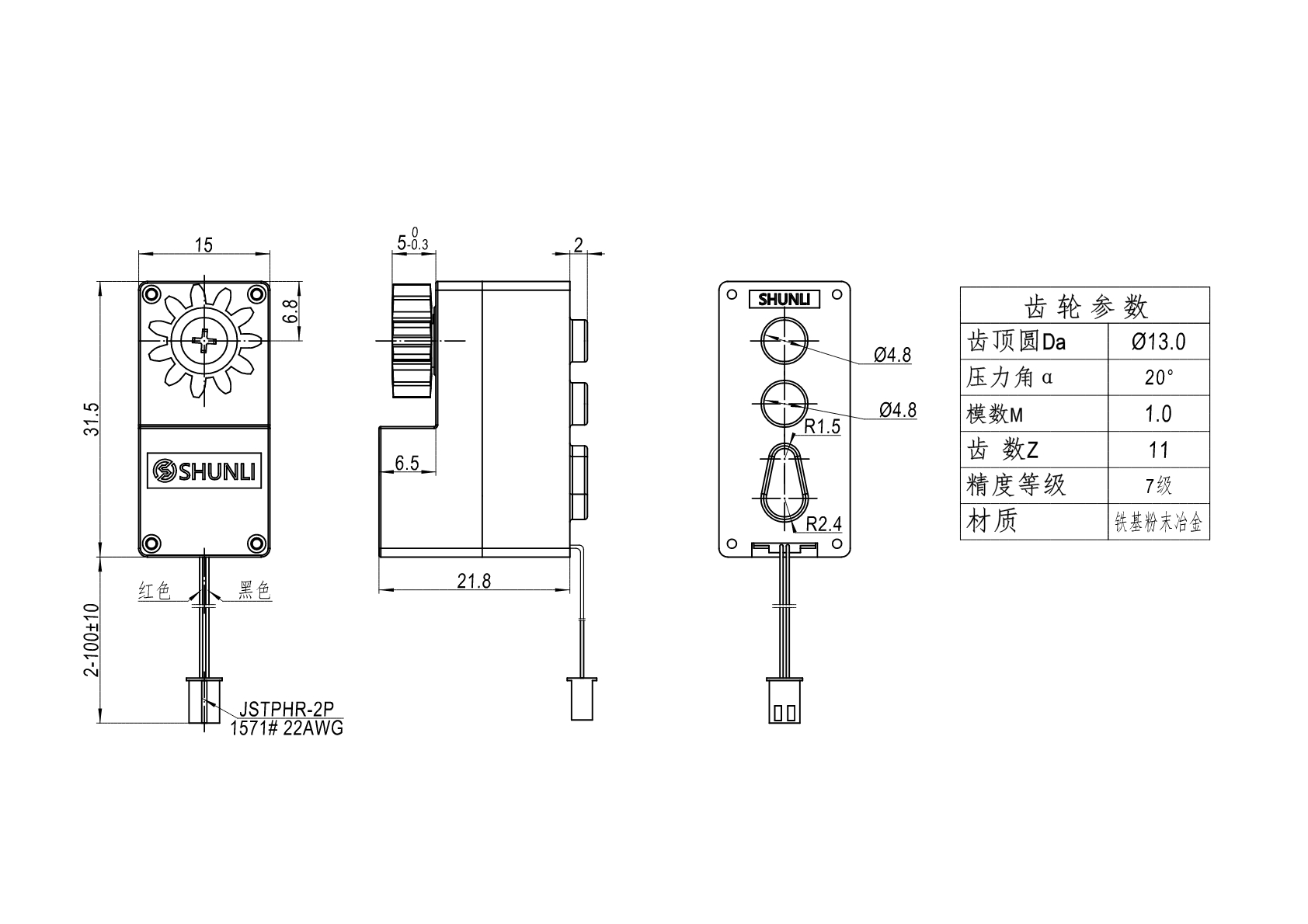

GM2215 Reference Drawing
GM2215 Reference Drawing

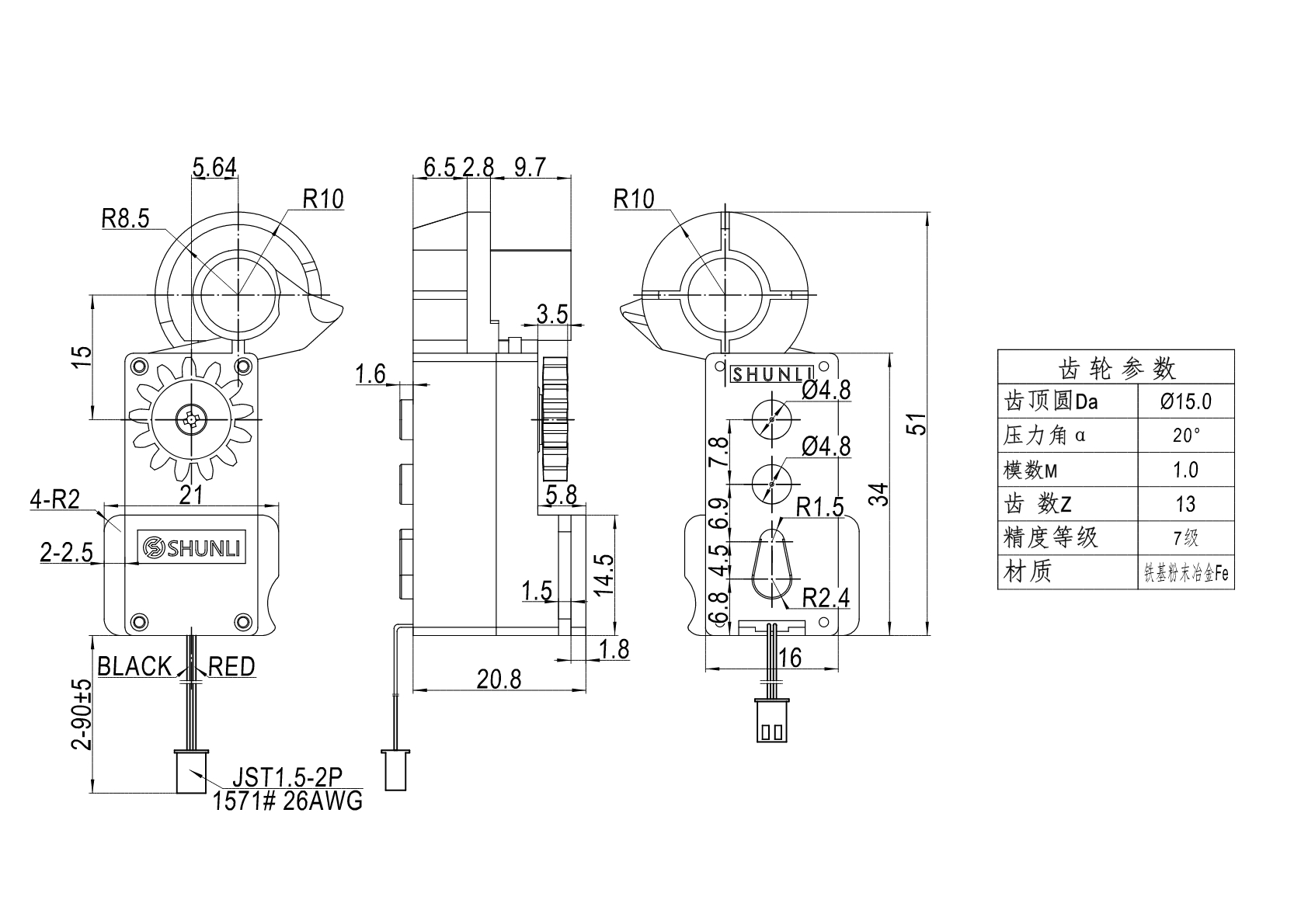

GM2219 Reference Drawing
GM2219 Reference Drawing
📊 Reference Datasheet
Gearbox Technical Data
Parameter Specification Value
Ratio 199K / 241K / 265K
Max. Rated Torque 1.5 ~ 2.5 Kgf.cm
Max. Gear Breaked Torque 4 ~ 5 Kgf.cm
Gearbox Efficiency 45% ~ 60%
Gearmotor Technical Data
Gearmotor Model Ratio Rated Voltage No-Load Rated Stall
Speed (RPM) Current (mA) Speed (RPM) Current (mA) Torque (mN.m / gf.cm) Current (mA) Torque (N.m / Kgf.cm)
GM2215FMN20-199K 1 : 199 4.5 VDC 52 ≤ 50 40 ≤ 120 18 / 180 ≤ 350 0.18 / 1.8
GM2222FMN20-230K 1 : 230 58 ≤ 78 49 ≤ 135 24 / 240 ≤ 450 0.2 / 2.0
GM2219FMN20-265K 1 : 241 58 ≤ 65 50 ≤ 130 24 / 240 ≤ 680 0.2 / 2.0
62 ≤ 75 51 ≤ 140 35 / 350 ≤ 750 0.22 / 2.2
⚙️ Product Range & Lineup

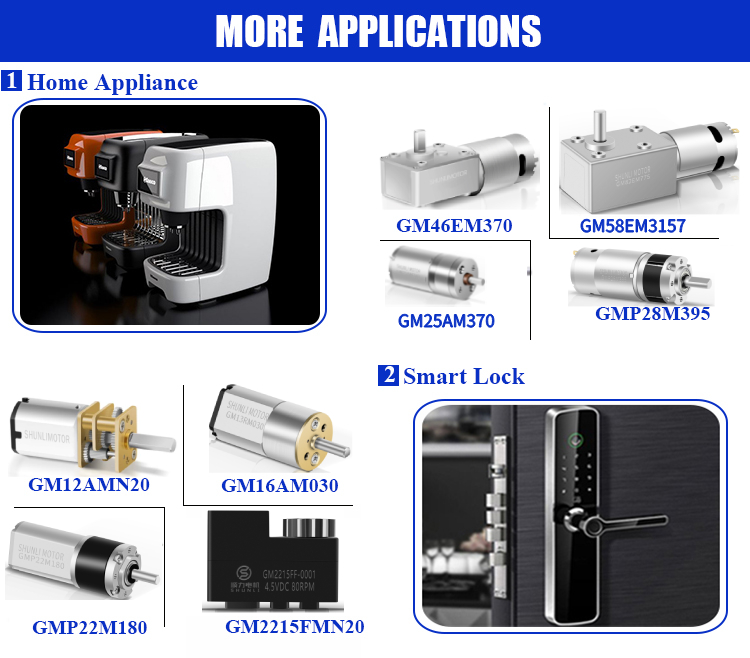

Micro Gear Motor Options Group A

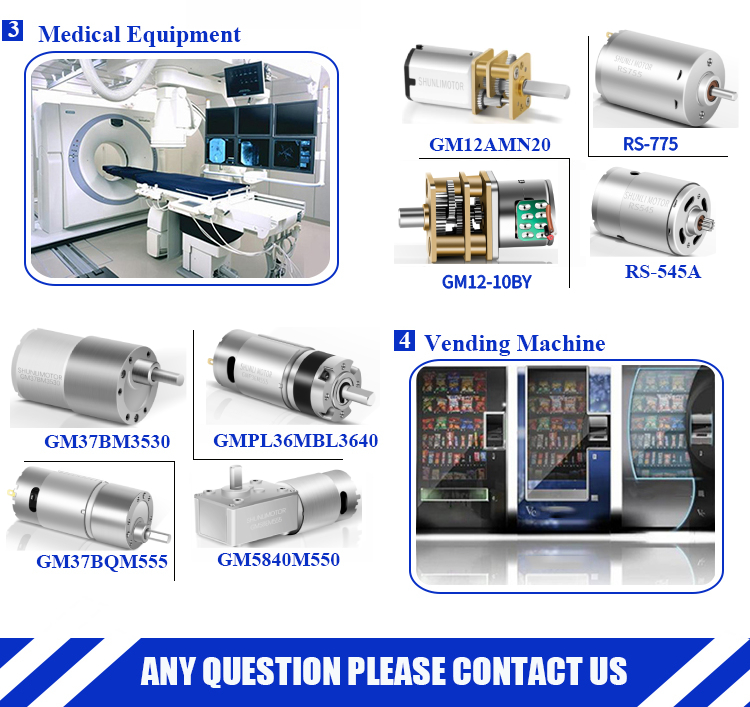

Micro Gear Motor Options Group B
Manufacturing Detail 1

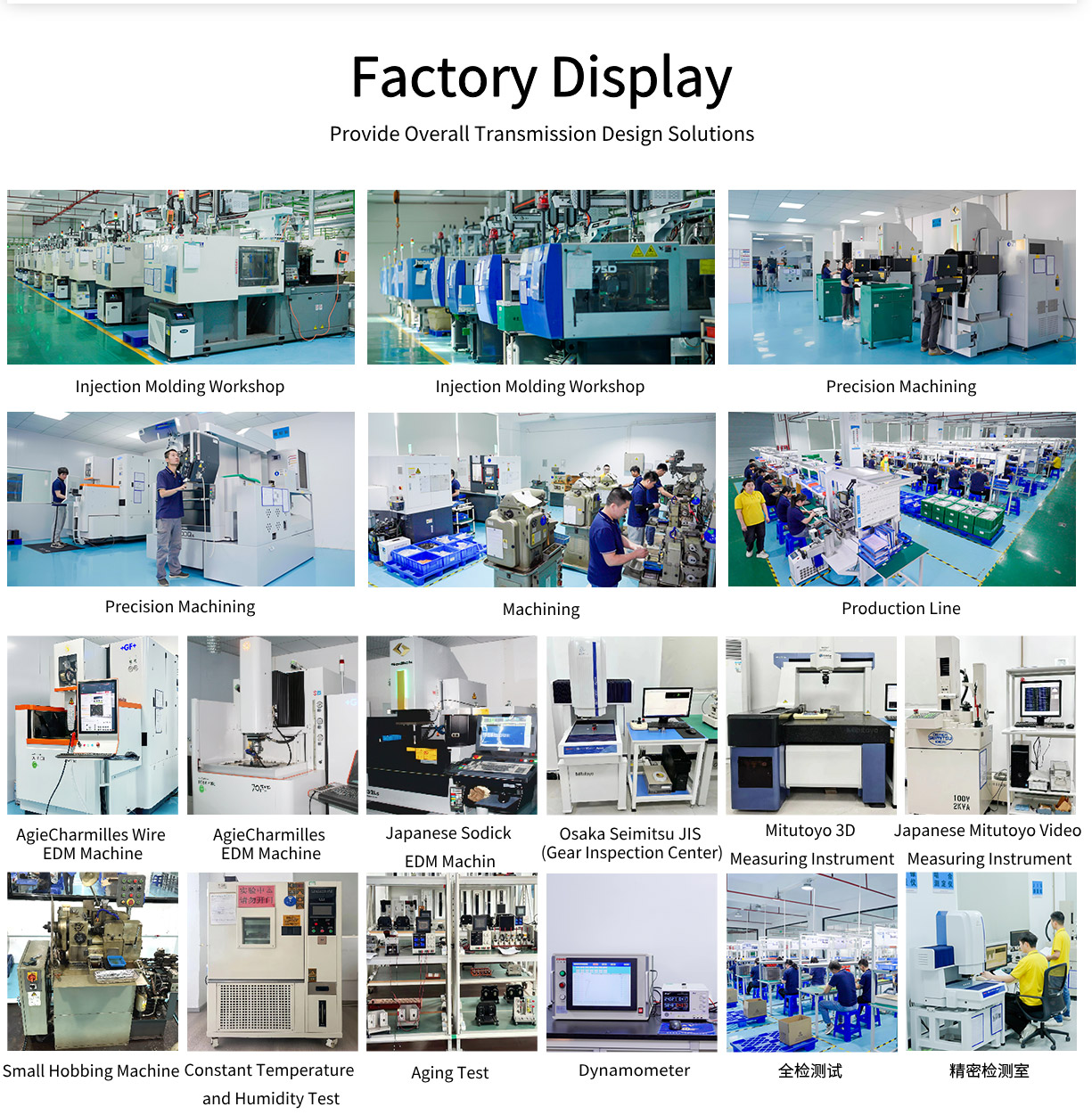

Manufacturing Detail 2
Manufacturing Detail 3
Manufacturing Detail 4
🛡️ Quality Control & Standards
Quality Control Facilities
FAQ
Are you a trading company or a manufacturer?
We are a factory. We specialize in micro DC motors and DC gear motors with over 14 years of professional manufacturing experience.
What is the payment term for a new customer?
We can arrange an online Assurance Order for new customers, which supports payments via MasterCard, Visa, etc. Customers can also choose to pay through PayPal, T/T, and other standard methods.
I cannot find a suitable motor on your website. Can you customize a motor for me?
Yes, we can customize a suitable motor specifically designed according to our customer's technical requirements and specifications.
Do you have certificates for your motors?
Yes, we have CE, FCC, ISO, and other relevant certifications. If you have additional specific certification requirements, we can apply for them to meet your market standards.
How do you handle Quality Control?
We employ professional inspection staff across every production line process. Once a motor is assembled, it undergoes testing using full-suite quality inspection machinery, including Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Test Machines, Noise Testers, and more.
