Shunli Motor Small Gear Motor 1.5V 3V 6V 12V DC Motor With Micro Gearbox Low Speed 30RPM 50RPM 80RPM for Intelligent Lock
Shunli Motor Small Gear Motor 1.5V 3V 6V 12V DC Motor With Micro Gearbox Low Speed 30RPM 50RPM 80RPM for Intelligent Lock
Shunli Motor Small Gear Motor 1.5V 3V 6V 12V DC Motor With Micro Gearbox Low Speed 30RPM 50RPM 80RPM for Intelligent Lock
Shunli Motor Small Gear Motor 1.5V 3V 6V 12V DC Motor With Micro Gearbox Low Speed 30RPM 50RPM 80RPM for Intelligent Lock
Shunli Motor Small Gear Motor 1.5V 3V 6V 12V DC Motor With Micro Gearbox Low Speed 30RPM 50RPM 80RPM for Intelligent Lock
1 / 5
Shunli Motor Small Gear Motor 1.5V 3V 6V 12V DC Motor With Micro Gearbox Low Speed 30RPM 50RPM 80RPM for Intelligent Lock
Shunli Motor Small Gear Motor 1.5V 3V 6V 12V DC Motor With Micro Gearbox Low Speed 30RPM 50RPM 80RPM for Intelligent Lock
Shunli Motor Small Gear Motor 1.5V 3V 6V 12V DC Motor With Micro Gearbox Low Speed 30RPM 50RPM 80RPM for Intelligent Lock
Shunli Motor Small Gear Motor 1.5V 3V 6V 12V DC Motor With Micro Gearbox Low Speed 30RPM 50RPM 80RPM for Intelligent Lock
Shunli Motor Small Gear Motor 1.5V 3V 6V 12V DC Motor With Micro Gearbox Low Speed 30RPM 50RPM 80RPM for Intelligent Lock

Shunli Motor Small Gear Motor 1.5V 3V 6V 12V DC Motor With Micro Gearbox Low Speed 30RPM 50RPM 80RPM for Intelligent Lock

Send Inquiry

Product Description

Product Banner

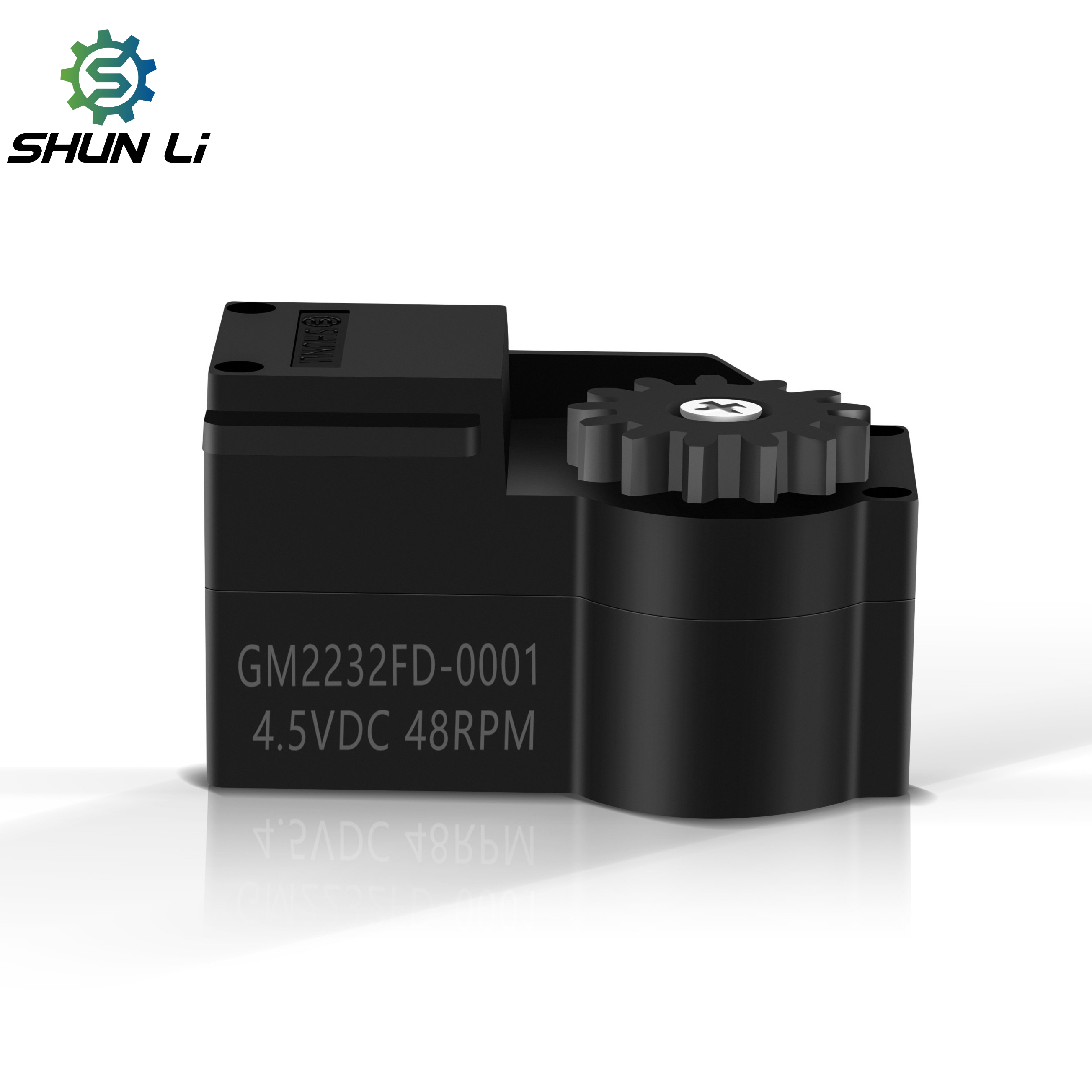

Product Specification Graphic
Product Model GM2232FD-0001
Ratio 1:267K
Speed 44RPM-55RPM
Voltage 4.5V
Rated Torque 40 mN.m
Support customization The Transmission Dimensions And Motor Parameters Can Be Customized

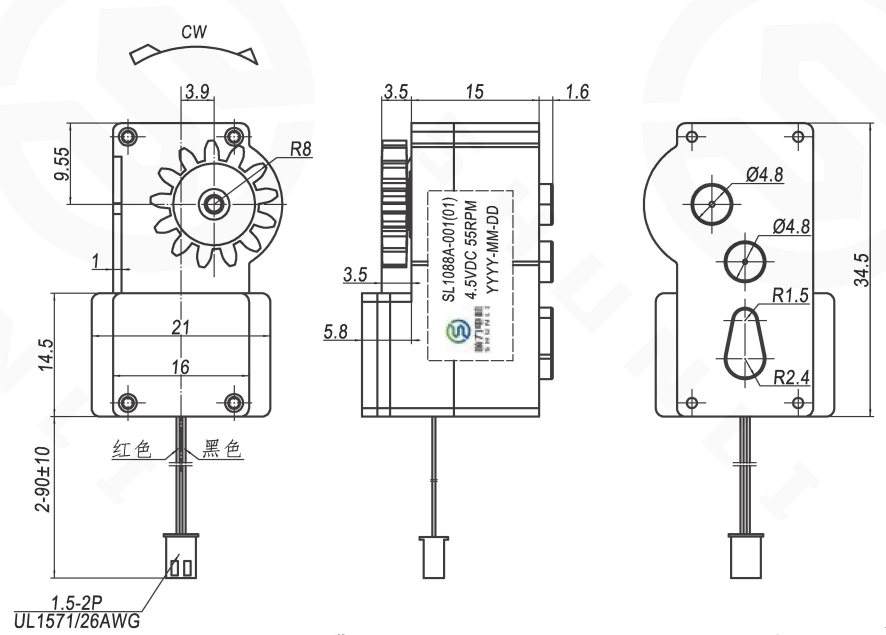

Dimension Drawing

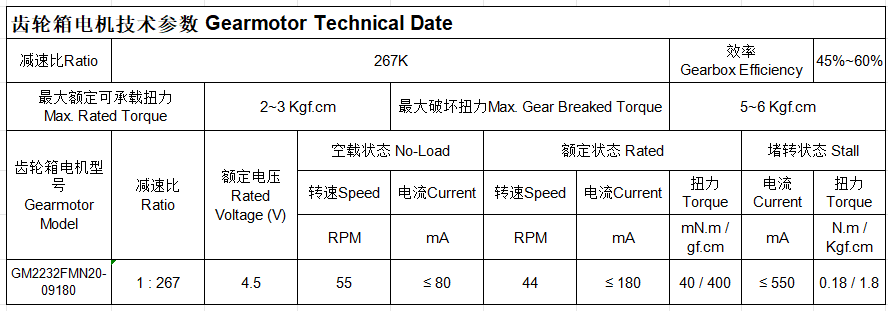

Performance Curve

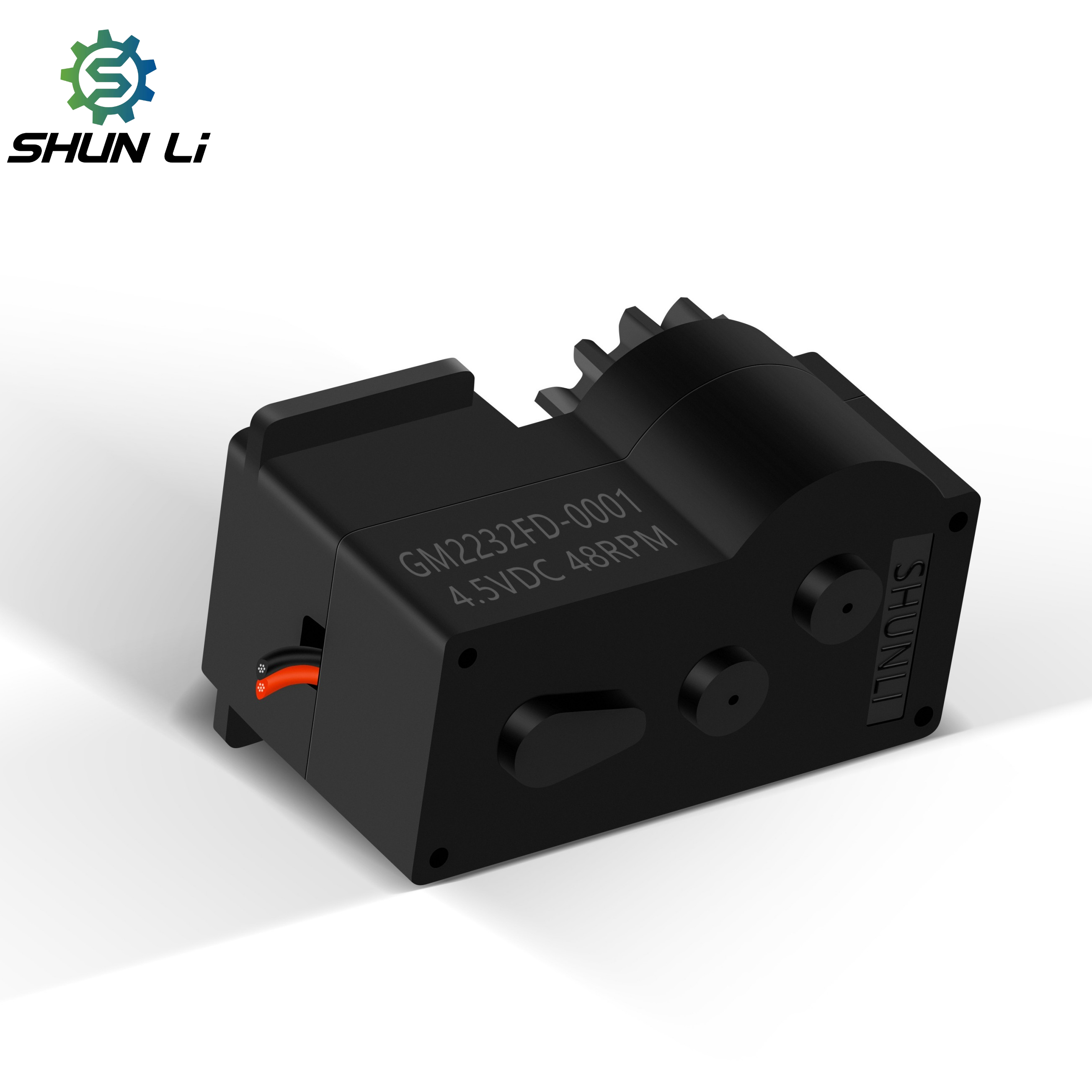

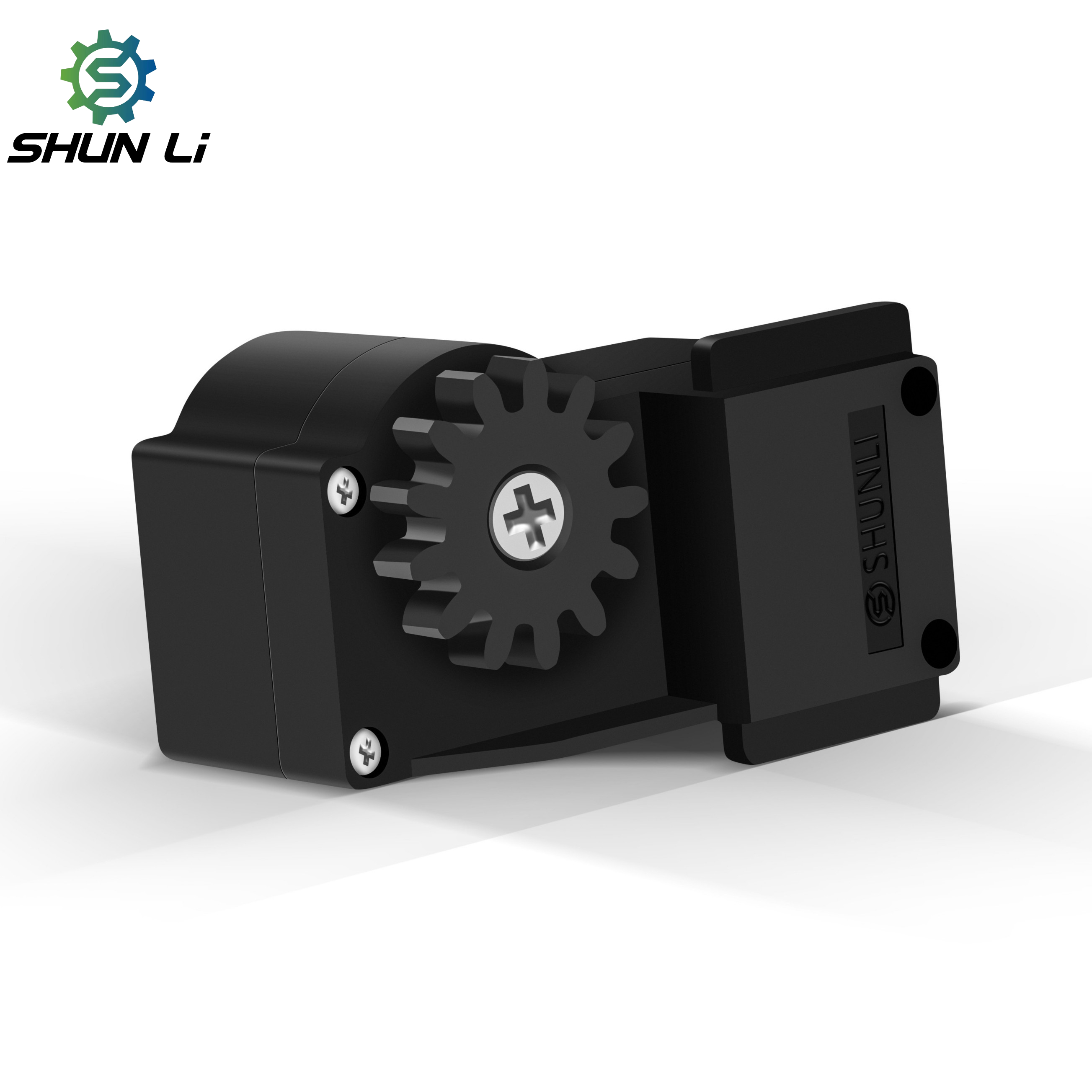

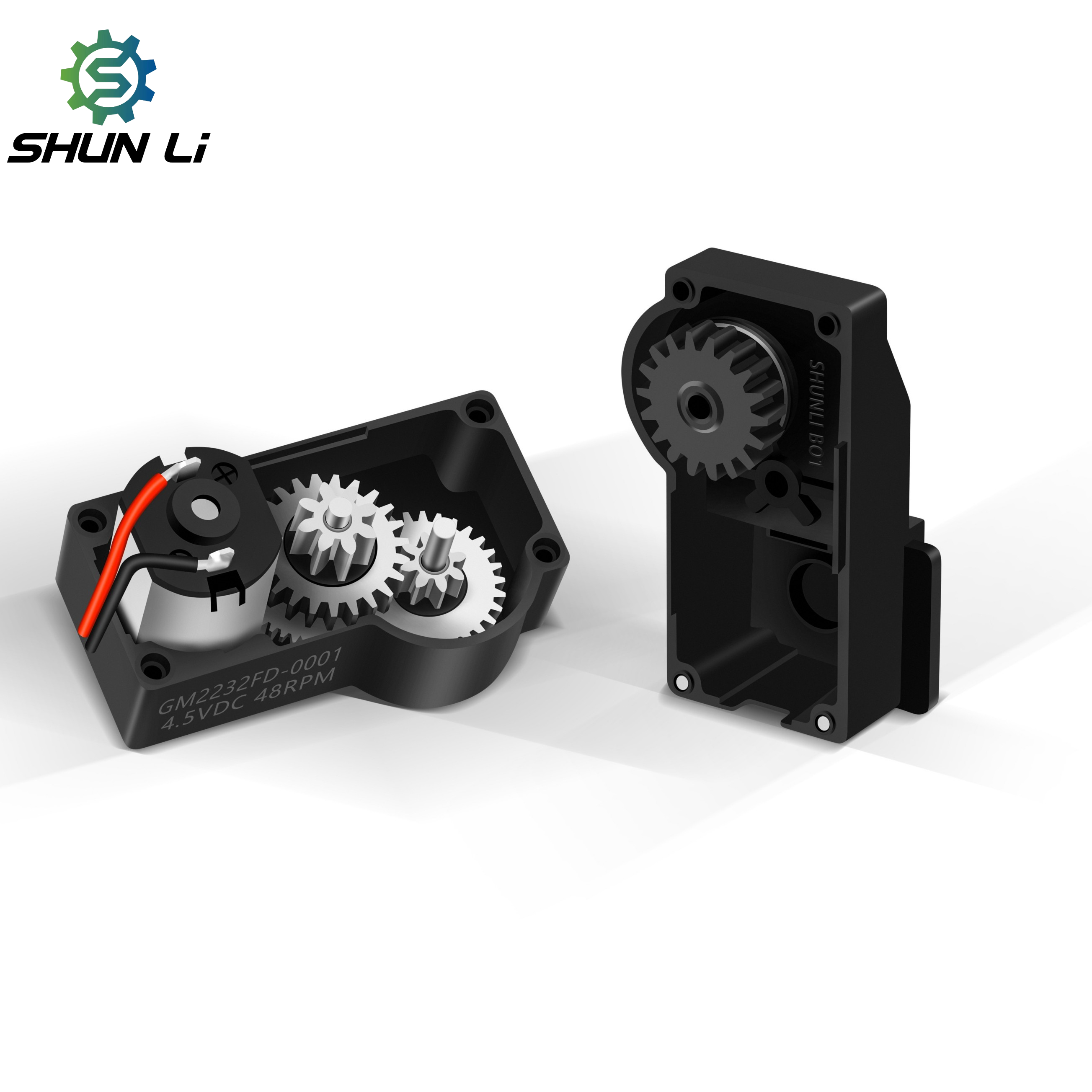

Product View 1 Product View 2 Product View 3 Product View 4 Product View 5 Product View 6
FAQ
Are you a trading company or a manufacturer?
We are a factory. We specialize in micro DC motors and DC gear motors with over 14 years of professional experience.
What is the payment term for new customers?
We can establish an online Assurance Order for new customers, allowing online payments via MasterCard, Visa, etc. Customers can also choose to pay through PayPal, T/T, and other convenient methods.
Can you customize a motor if I cannot find a suitable one on the website?
Yes, we can design and customize a motor specification to meet your application's requirements.
Do you have certifications for the motors?
Yes, we hold CE, FCC, ISO, and other relevant certifications. If you need specific certifications for your market, we can apply for them on your behalf.
How do you manage Quality Control?
We employ professional QC staff at every step of the production process. Once assembly is complete, we use dedicated testing machinery (including Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Chambers, and Noise Testers) to verify performance.
Can the transmission dimensions and motor parameters be customized?
Yes. Both the physical transmission dimensions and all electrical motor parameters are fully customizable to suit your application design requirements.
