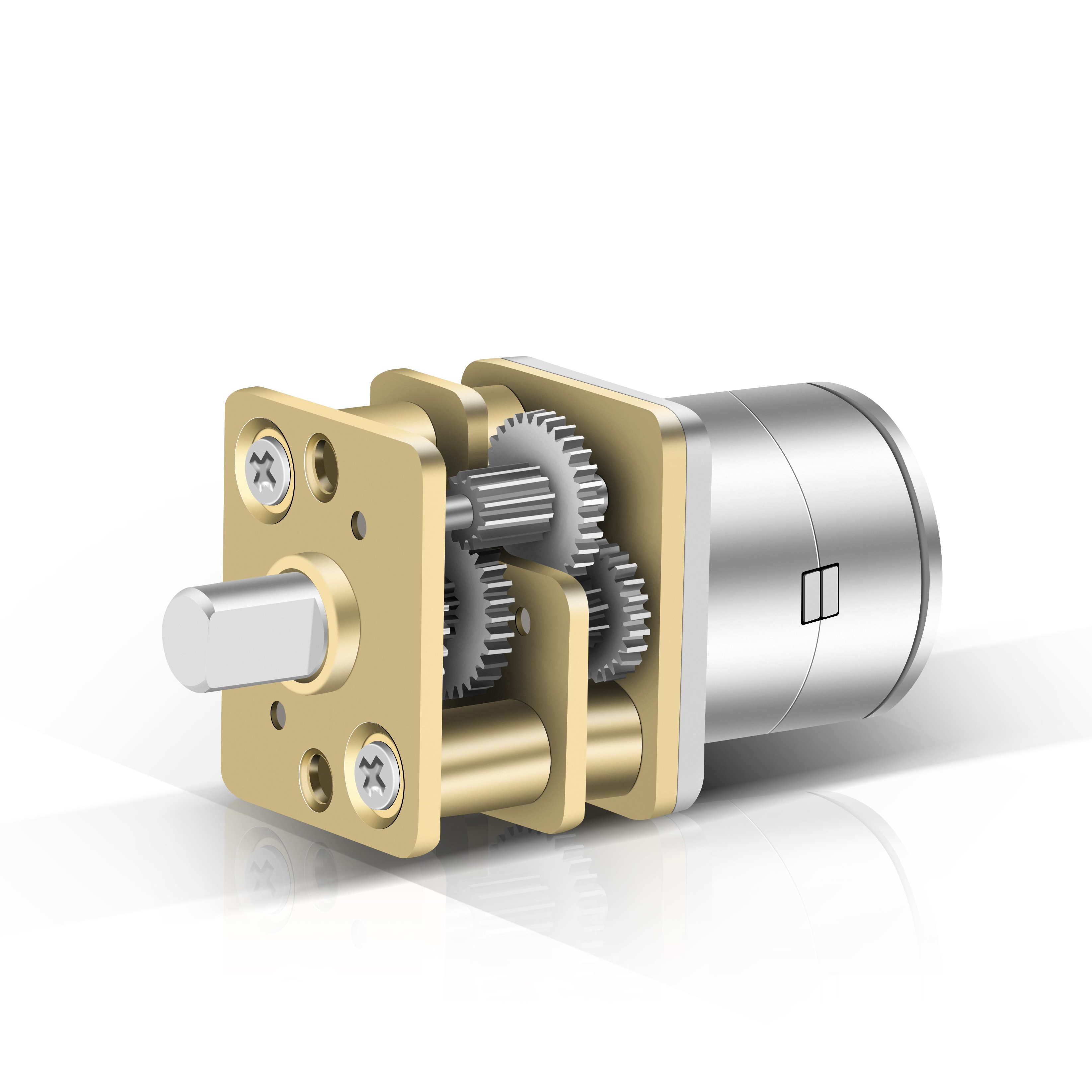

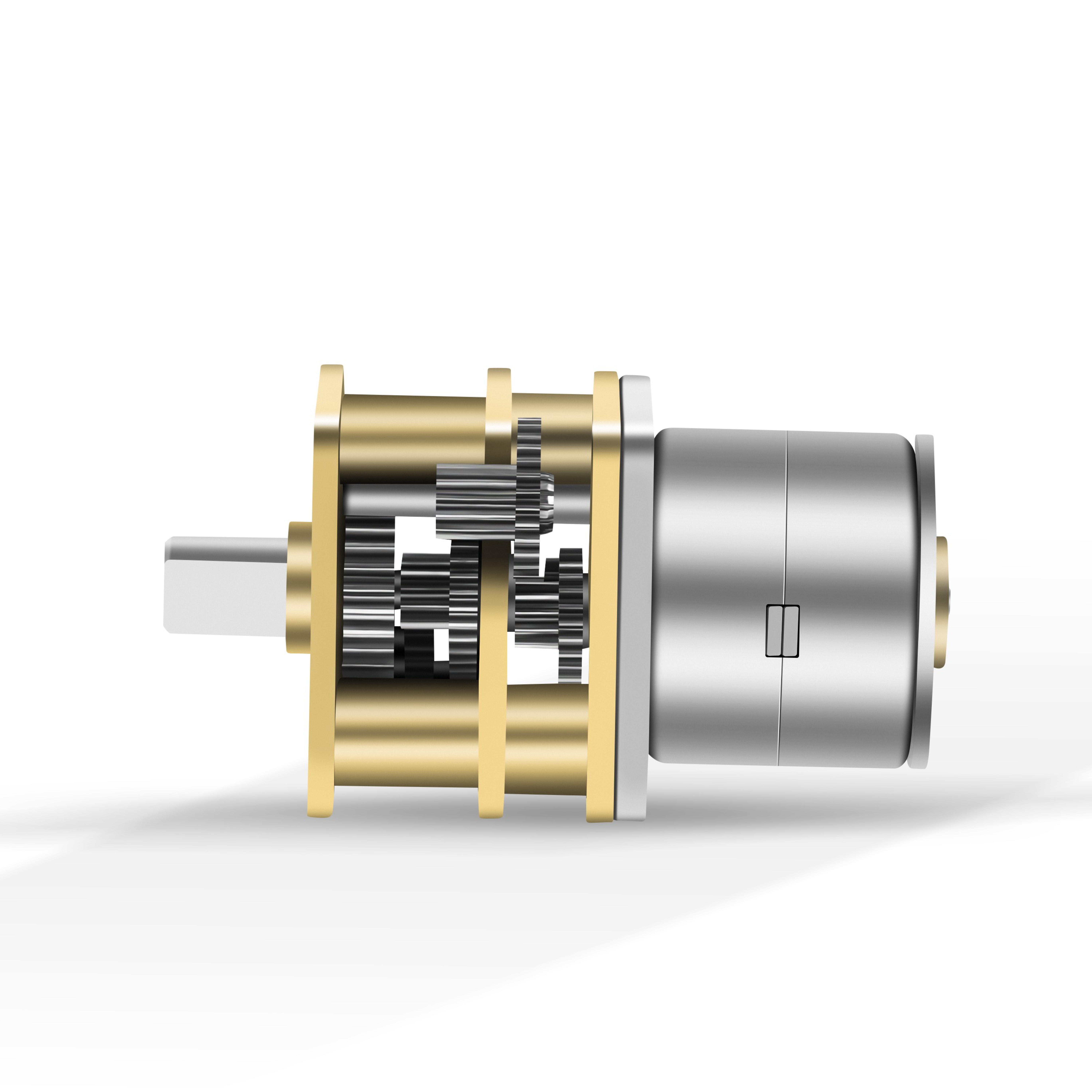

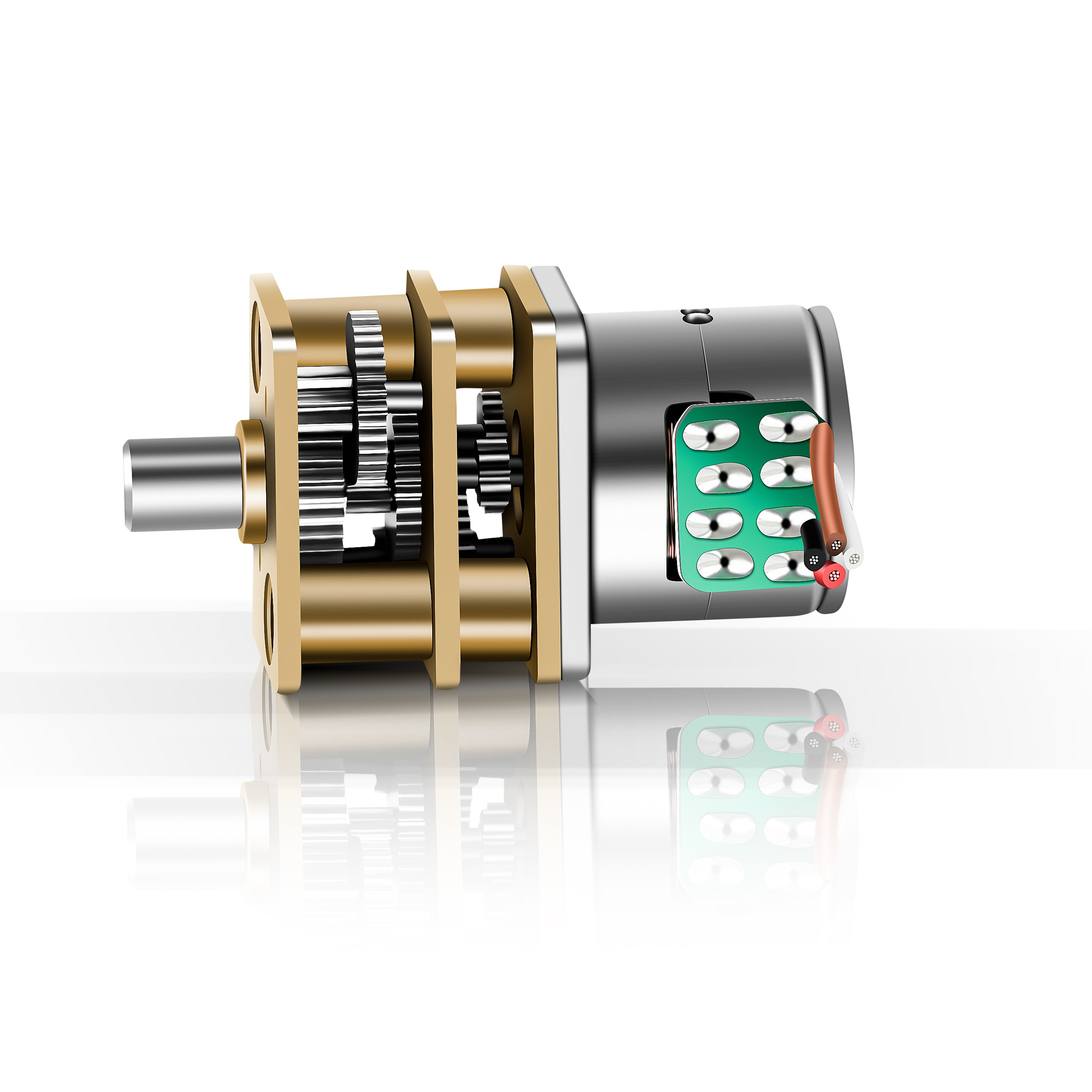

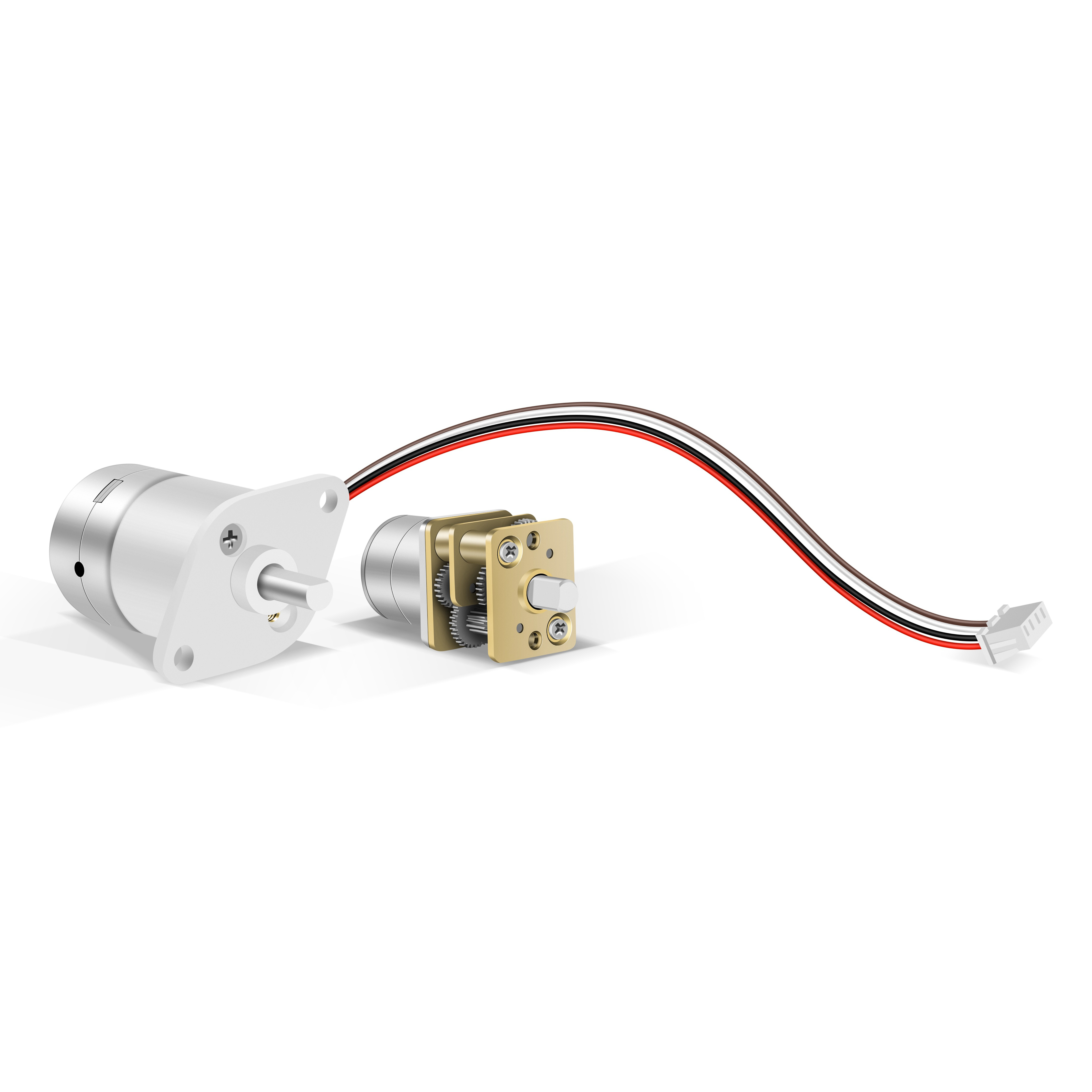

Shunli Dc Door Lock Stepper Gear Motor Double Dual Shafts Gearbox Low Speed Gear Motor Customized 5V for Vehicle Air Conditioner
Shunli Dc Door Lock Stepper Gear Motor Double Dual Shafts Gearbox Low Speed Gear Motor Customized 5V for Vehicle Air Conditioner
Shunli Dc Door Lock Stepper Gear Motor Double Dual Shafts Gearbox Low Speed Gear Motor Customized 5V for Vehicle Air Conditioner
Shunli Dc Door Lock Stepper Gear Motor Double Dual Shafts Gearbox Low Speed Gear Motor Customized 5V for Vehicle Air Conditioner
Shunli Dc Door Lock Stepper Gear Motor Double Dual Shafts Gearbox Low Speed Gear Motor Customized 5V for Vehicle Air Conditioner
1 / 5
Shunli Dc Door Lock Stepper Gear Motor Double Dual Shafts Gearbox Low Speed Gear Motor Customized 5V for Vehicle Air Conditioner
Shunli Dc Door Lock Stepper Gear Motor Double Dual Shafts Gearbox Low Speed Gear Motor Customized 5V for Vehicle Air Conditioner
Shunli Dc Door Lock Stepper Gear Motor Double Dual Shafts Gearbox Low Speed Gear Motor Customized 5V for Vehicle Air Conditioner
Shunli Dc Door Lock Stepper Gear Motor Double Dual Shafts Gearbox Low Speed Gear Motor Customized 5V for Vehicle Air Conditioner
Shunli Dc Door Lock Stepper Gear Motor Double Dual Shafts Gearbox Low Speed Gear Motor Customized 5V for Vehicle Air Conditioner

Shunli Dc Door Lock Stepper Gear Motor Double Dual Shafts Gearbox Low Speed Gear Motor Customized 5V for Vehicle Air Conditioner

Send Inquiry

Product Description

Customized Micro DC Gear Motor Banner
Product Description
⚙️
Customized 12mm micro dc gear motor | Non captive stepper motor | Miniature 5v stepper motor of medical equipment

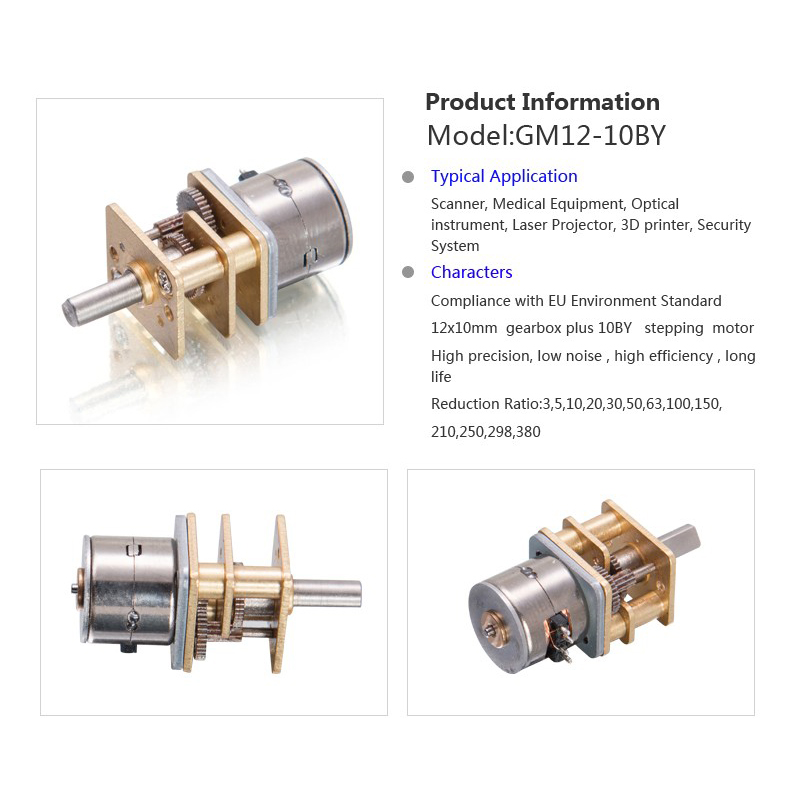

Micro Stepper Motor Anatomy
Motor Customized Specification

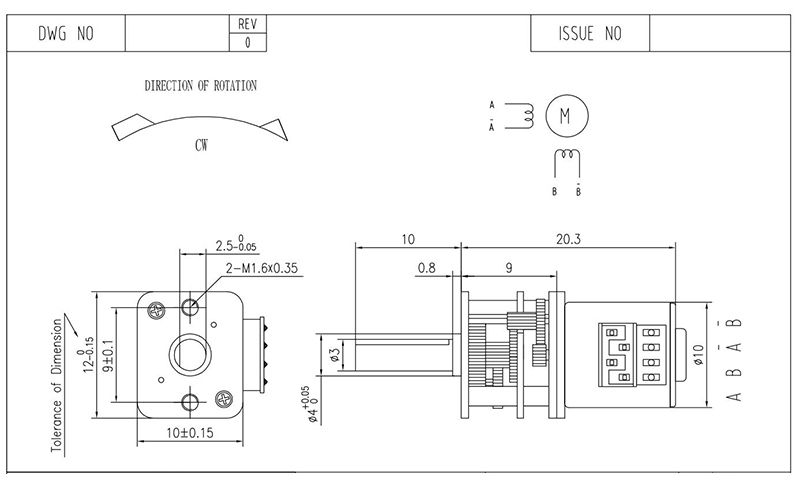

Reference Drawing — GM12-10BY

GM12-10BY Reference Drawing
Reference Datasheet
Gearbox Technical Data
Number of stages 1 2 3 4 5
Ratio 4K / 4.75K 16K / 19K / 22.6K 64K / 74K / 90K / 107K 256K / 304K / 361K / 429K / 509K 1024K / 1216K / 1444K / 1715K / 2036K / 2418K
Gearbox Length "L"(mm) 13.3 16.8 20.3 23.8 27.3
Max. Rated Torque 1.0 Kgf.cm 2.0 Kgf.cm 4.0 Kgf.cm 4.0 Kgf.cm 4.0 Kgf.cm
Max. Gear Breaked Torque 3.5 Kgf.cm 6.5 Kgf.cm 12.5 Kgf.cm 12.5 Kgf.cm 12.5 Kgf.cm
Gearbox Efficiency 80%~90% 70%~80% 60%~70% 50%~60% 40%~50%

Customized 12mm micro dc gear motor Non captive stepper motor miniature 5v stepper motor of medical equipment.

Gearmotor Technical Data
Gearmotor Model Ratio Rated Voltage (V) No-Load Rated Stall
Speed (RPM) Current (mA) Speed (RPM) Current (mA) Torque (N.m / Kgf.cm) Current (mA) Torque (N.m / Kgf.cm)
GMP22M130-64K 1 : 64 6 VDC 138 ≤ 160 110 ≤ 450 0.095 / 0.95 ≤ 1700 0.42 / 4.2
GMP22M180-256K 1 : 256 5 VDC 38 ≤ 180 30 ≤ 1050 0.32 / 3.2 ≤ 3900 1.25 / 12.5

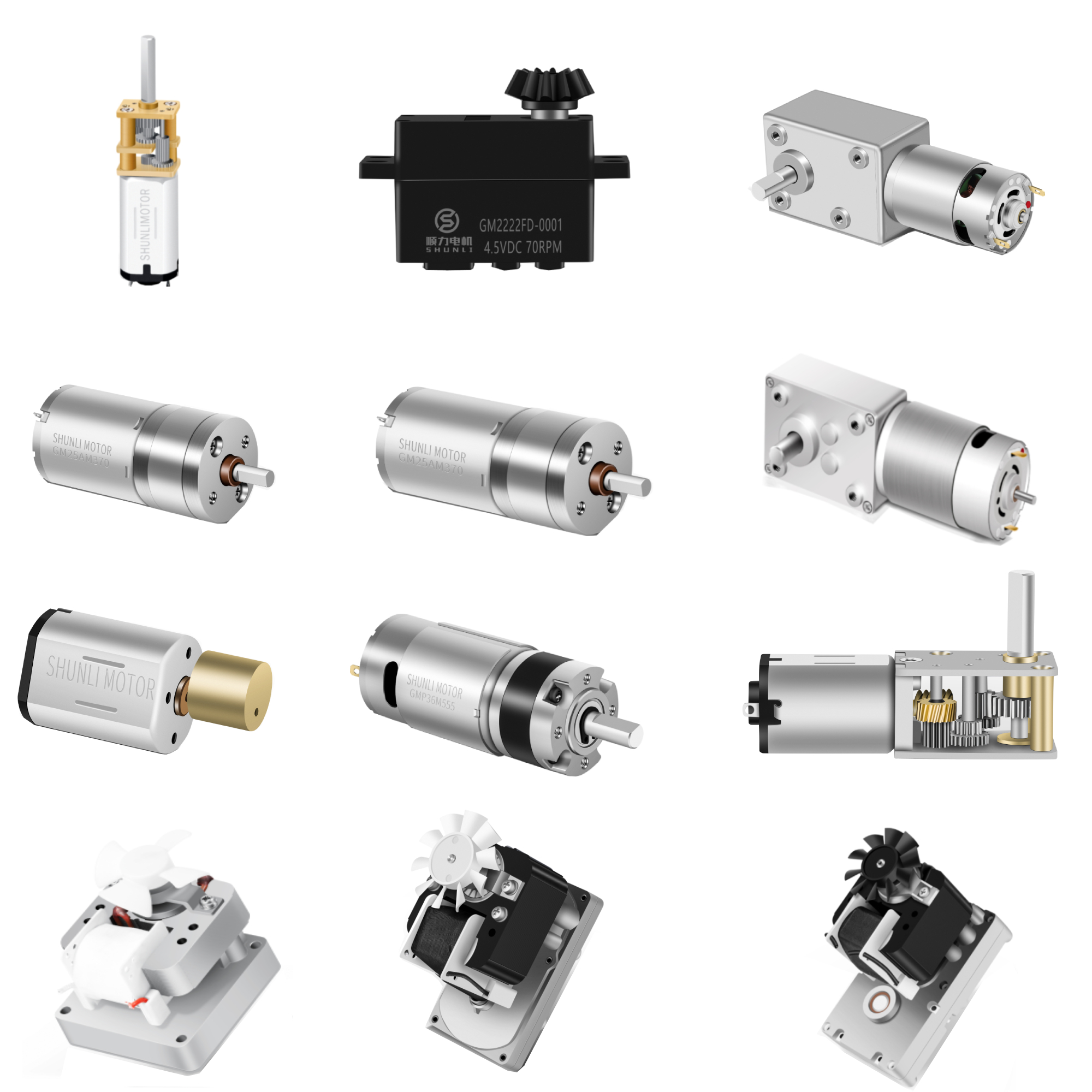

Micro Gear Motor Recommendation Details
Micro Stepper Motor Specification Range
Certifications
Industry Qualifications and Certifications
Customer Evaluation
Client Ratings and Trust Evaluations
Manufacturing and Quality Control

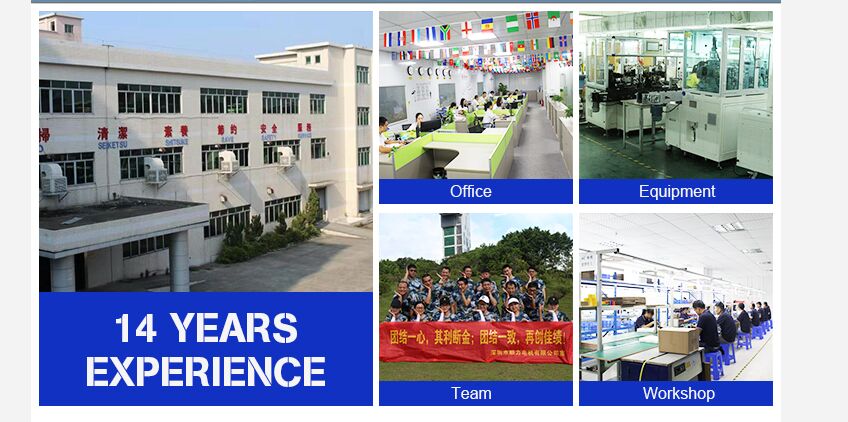

Production Facility Showroom
Advanced Equipment Workshop
Testing and Assembly Line Process
Frequently Asked Questions
QAre you a trading company or manufacturer?
We are a factory. We specialize in micro DC motors and DC gear motors for more than 14 years.
QWhat is the payment term for new customers?
We can establish secure online transaction options allowing payment via credit card, wire transfer (T/T), or PayPal.
QI cannot find a suitable motor on your website, can you customize it for me?
Yes, we can customize a suitable motor based on our customers' specific voltage, speed, torque, and dimension requirements.
QDo you have certifications for the motors?
Yes, we have CE, FCC, ISO, and other relevant standard certifications. If you need other specific certifications, we can apply for them on your behalf.
QHow is your Quality Control managed?
We have professional inspection staff on every production line process. Finished motors undergo thorough testing using hardness testers, 2.5D image testers, salt spray chambers, life cycle testers, temperature chamber test machines, and noise testing devices.
QWhat information is needed to get a custom motor quotation?
Please provide your requirements regarding nominal voltage, rated speed, rated torque, shaft dimensions, duty cycle, and the target application environment to get an accurate recommendation.
