Zonix Motor
Zonix Motor
| Gearmotor Model | Ratio | Rated Voltage (V) | No-Load | Rated | Stall | ||||
|---|---|---|---|---|---|---|---|---|---|
| Speed | Current | Speed | Current | Torque | Current | Torque | |||
| RPM | mA | RPM | mA | mN.m / gf.cm | mA | mN.m / gf.cm | |||

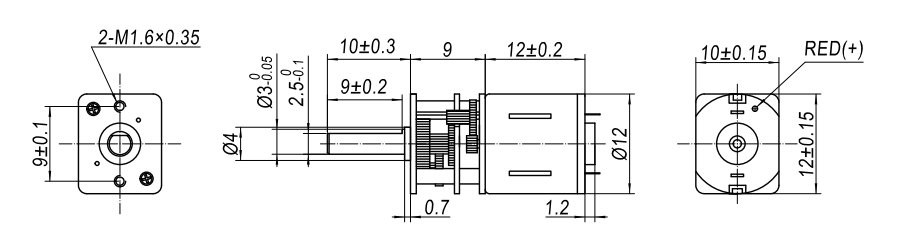

| GM12AMN10-298K | 1 : 298 | 4.5~6VDC | 70 | ≤ 80 | 55 | ≤ 285 | 5.5/55 | ≤ 700 | 210/2100 |

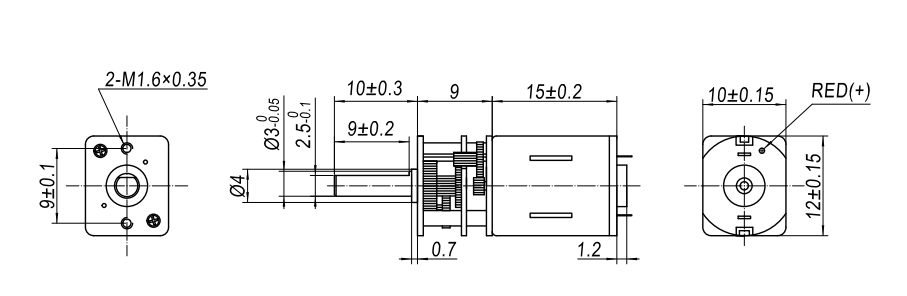

| GM12AMN20-150K | 1 : 150 | 92 | ≤ 55 | 80 | ≤ 140 | 2.8/28 | ≤ 700 | 120/1200 | |
| GM12AMN30-10K | 1 : 10 | 2500 | ≤ 60 | 2200 | ≤ 195 | 4.0/40 | ≤ 400 | 26/260 | |
| Number of stages | 2 | 4 | 5 | 7 |
| Gearbox Length “L”(mm) | 9.0 | 9.0 | 9.0 | 12.1 |
| Ratio | 3K / 5K / 10K | 17K/20K/30K/36K/50K/63K/100K | 110K/150K/210K/250K/298K/380K | 372K/625K/1000K |
| Max. Rated Torque | 200 gf.cm | 600 gf.cm | 1000 gf.cm | 1500 gf.cm |
| Max. Gear Breaked Torque | 600 gf.cm | 1500 gf.cm | 2800 gf.cm | 3500 gf.cm |
| Gearbox Efficiency | 80%~90% | 65%~70% | 55%~60% | 45%~50% |
We are a professional factory specializing in producing high-quality motors for more than 14 years. With multiple production lines, a dedicated R&D team, mature management, and highly experienced engineers, we ensure a reliable and pleasant manufacturing and partnership experience.
In order to confirm product quality, every step of production is carefully checked, from material sourcing to final shipment. Quality is the basis of our continuous development.
