Worm Gear DC Motor 755 6 Volt 12V Permanent Magnet High Speed 15000rpm Small Micro Motor for Home Appliances B2B采购

Product Description

6v 12v high rpm 9000rpm 15000rpm 750/755 dc motor

Product Details

Motor Customized Specification Available

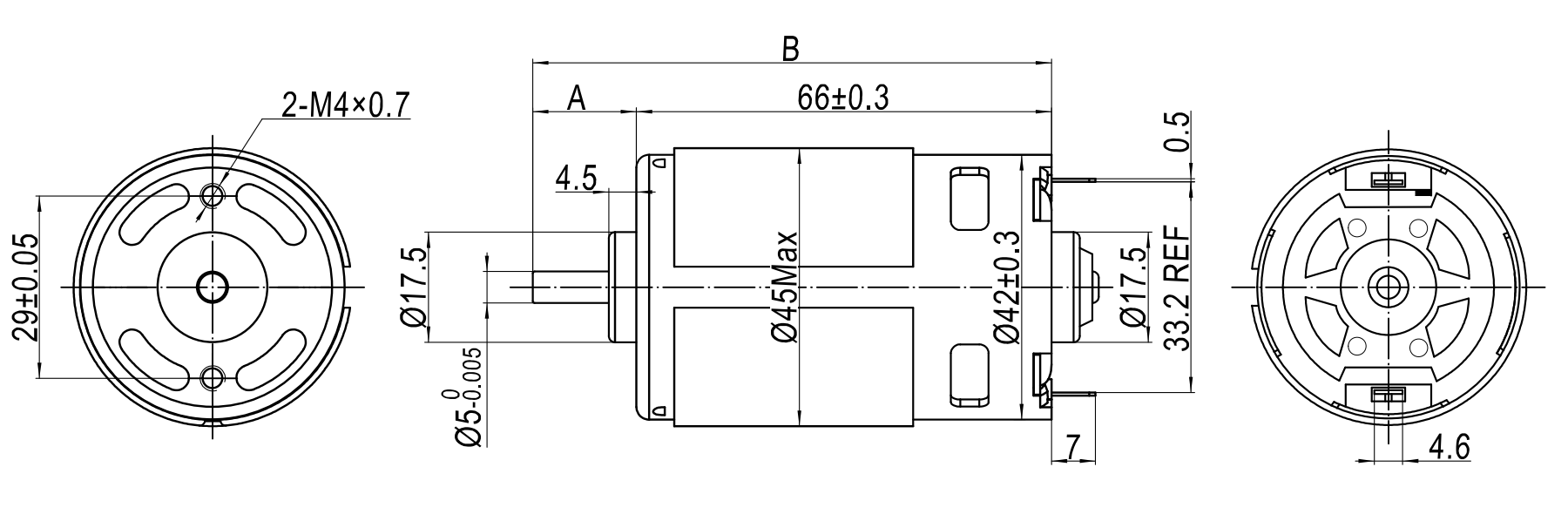

Reference Drawing

RS - 755 H

RS - 775 H

The length of shaft can be customized.

Technical Specifications

PMDC MOTOR Technical Data
Model		Rated Voltage (V)		No-Load		Rated				Stall
Model		Operating Range	Nominal	Speed (RPM)	Current (A)	Speed (RPM)	Current (A)	Torque (mN.m / gf.cm)	Power (W)	Current (A)	Torque (mN.m / gf.cm)
RS-750H	7032R	6.0~12.0	12 VDC	15000	1.79	12671	7.52	48.6 / 496	66.6	55.6	393.1 / 4010
RS-755H	7512R	3.0~6.0	6 VDC	9500	2.26	8123	9.31	45.1 / 460	38.2	66.34	306.9 / 3130

Application

Certifications

Why Choose Us

1. Advanced Production Capacity

We are a factory specializing in producing motors for more than 14 years. With three specialized factories, a professional R&D team, mature management, and experienced engineers, we ensure a reliable and pleasant manufacturing partnership.

2. Quality Control

In order to confirm quality, every step from raw materials to final shipment is carefully checked. Quality is the absolute basis of our development.

3. Our Services

Gold seller status in possession of high credibility.

100% on-time delivery rate ensuring your product arrives timely.

Standard samples produced within 2 weeks. Customized samples produced within 3 weeks.

Timely response: all messages will be replied to within 2 hours.

Recommended Products

Frequently Asked Questions

Are you a trading company or a manufacturer?

We are a factory. We specialize in micro DC motors and DC gear motors for more than 14 years.

What is the payment term for a new customer?

We can draw up online assurance orders for new customers, which can be paid online with Credit Cards (Visa, MasterCard), PayPal, or T/T wire transfer.

I can't find a suitable motor on your website, can you customize it for me?

Yes, we can customize a suitable motor according to our customers' specific requirements.

Do you have certificates for the motors?

Yes, we have CE, FCC, ISO, and other standard certificates. If you have specific certification requirements, we can apply for them on your behalf.

How is your Quality Control?

We have professional inspection staff on every production line process. After completion, we use advanced testing equipment such as Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Test Machines, and Noise Testers to verify the performance.
