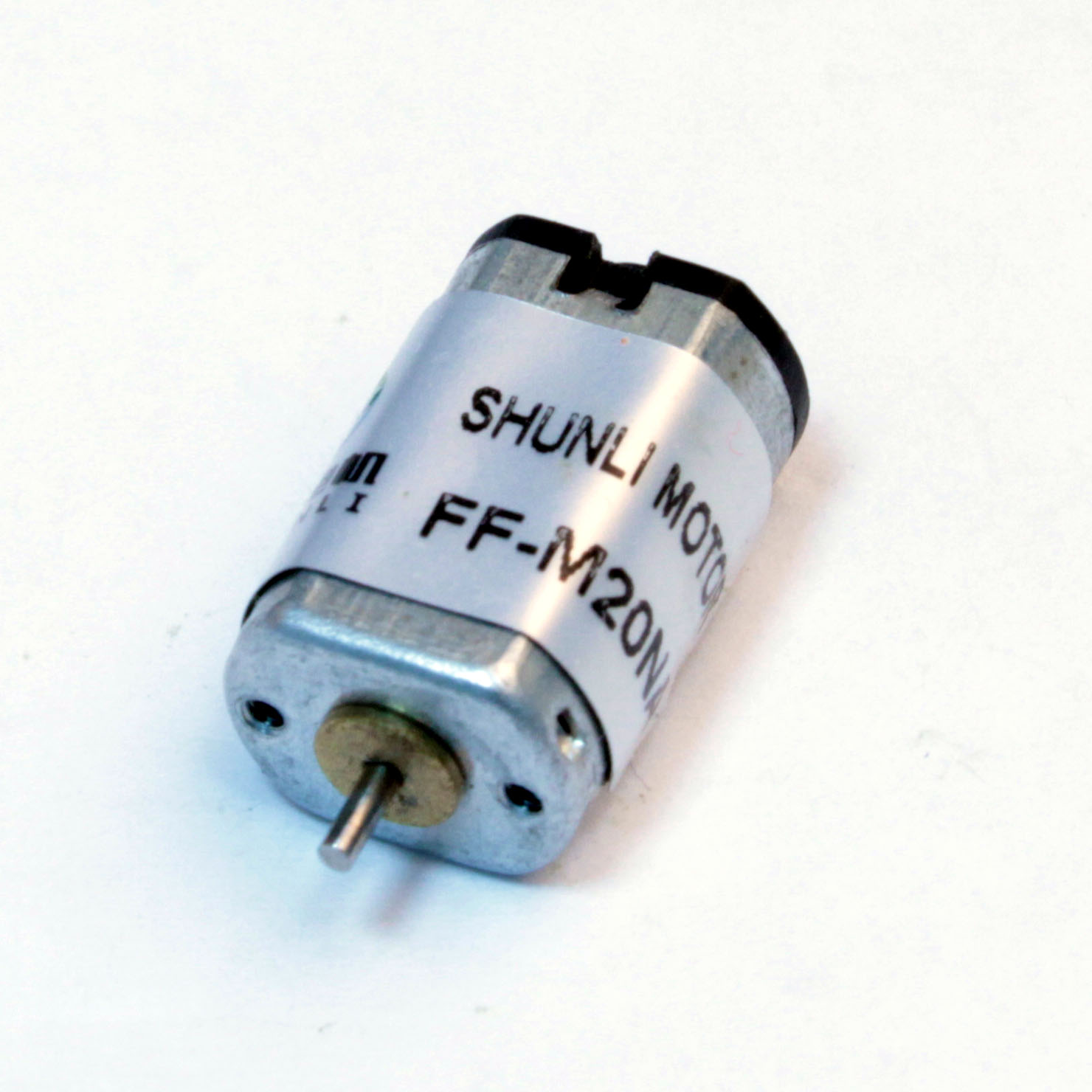

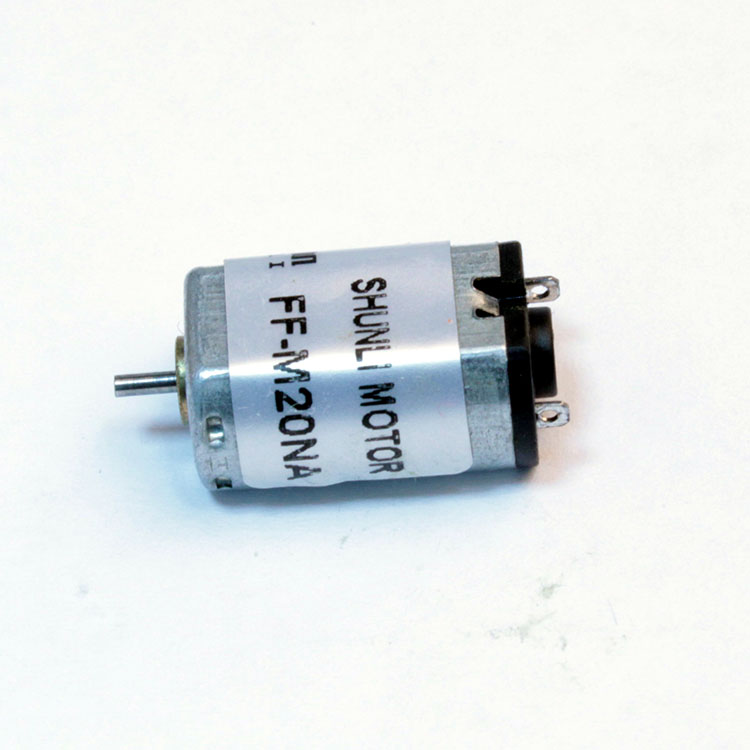

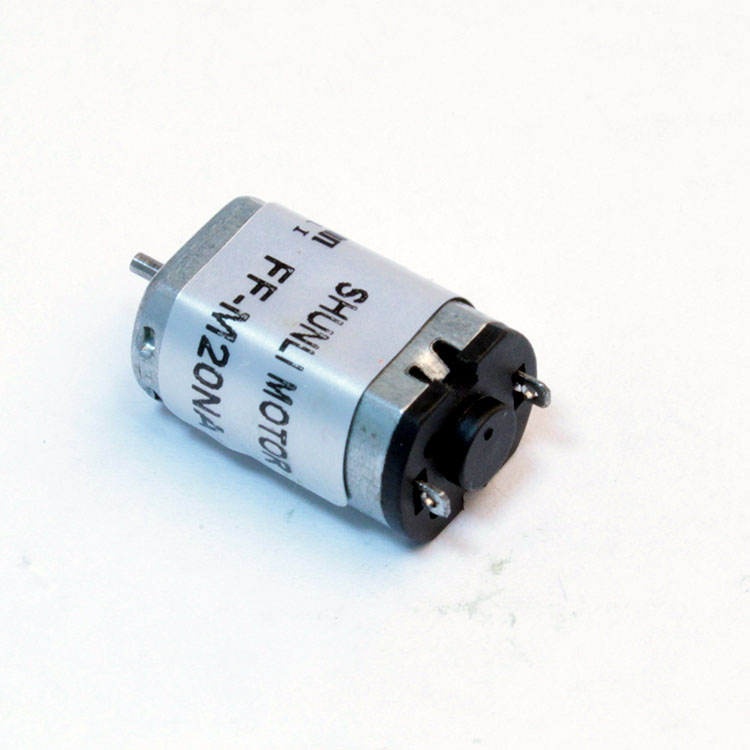

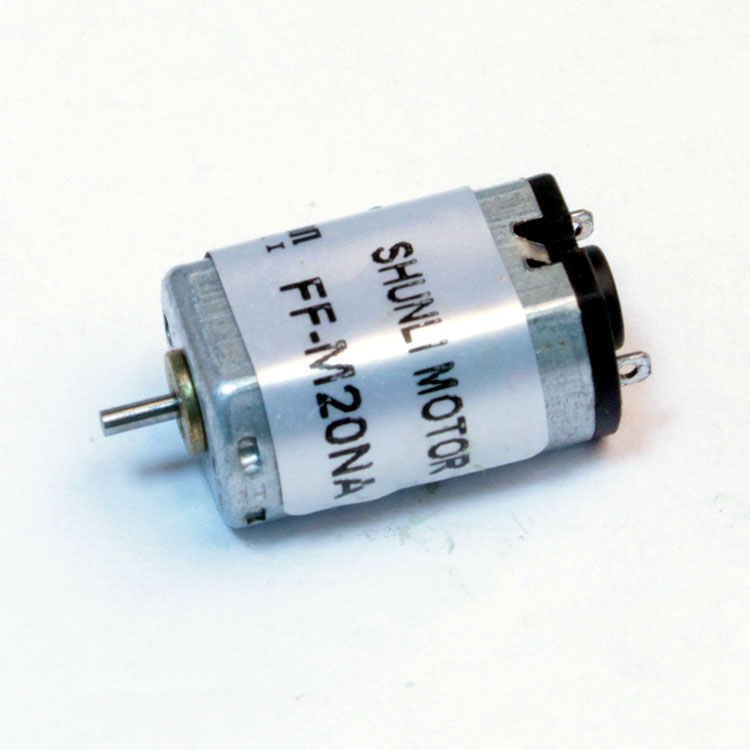

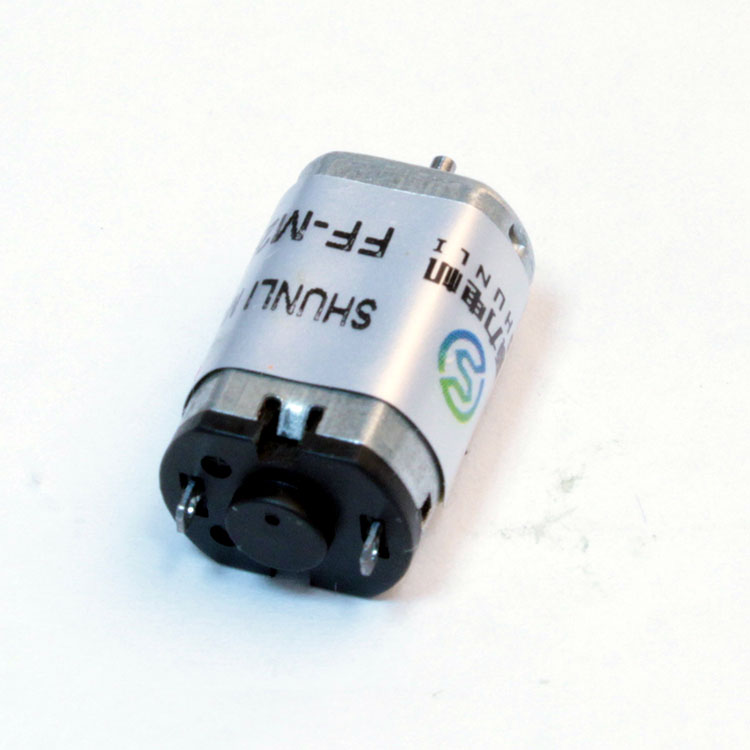

Small Electric Motor M20 Dc Motor 1.5v 3v Micro Dc Motor for home appliance

Product Description

`
Promotion
Small Electric Motor M20 Dc Motor 1.5v 3v Micro Dc Motor
Small Electric Motor M20 Dc Motor 1.5v 3v Micro Dc Motor specs
Small Electric Motor M20 Dc Motor 1.5v 3v Micro Dc Motor line
Product Description
Small Electric Motor M20 Dc Motor 1.5v 3v Micro Dc Motor details
PMDC MOTOR Technical Data
PMDC MOTOR Model Rated Voltage (V) No-Load Rated Stall
Operating Range Nominal Speed Current Speed Current Torque Power Current Torque
RPM mA RPM mA mN.m / gf.cm W mA mN.m / gf.cm
FF-M20VA 8130 2.0~3.0 3VDC 15200 45 11800 160 0.16/1.6 0.19 550 0.69/7
7170 1.5-3.0 2VDC 8000 25 6000 75 0.09/0.9 0.06 230 0.35/3.6
10100 1.5~4.0 2.8VDC 18000 50 14800 190 0.2/2 0.3 880 1.1/11
Note: Customized parameters are available upon request to meet your specific technical requirements.
Application
Small Electric Motor M20 Dc Motor 1.5v 3v Micro Dc Motor applications
Our Company
Micro DC Motor manufacturer facility

Our factory was established in 2005. It is a high-tech enterprise integrating the research, development, production, and sales of various kinds of micro DC motor, geared motor, planetary geared motor, shaded pole geared motor, and special gearbox motor. Products are widely used in automobiles, communications equipment, smart homes, medical equipment, intelligent security, household appliances, western kitchen equipment, machinery and electronics, and other high-end transmission structures. Our products are exported to more than 50 countries and regions worldwide.

Production Process
Micro DC Motor production process
Certifications
Quality Certificate 1
Quality Certificate 2
Testing Equipment and Standards

We have introduced dozens of advanced production equipment and testing instruments from Germany, Japan, Switzerland, and other countries to strictly control the quality of each motor.

Frequently Asked Questions
Q1: Are you a trading company or a manufacturer?
We are a factory. We specialize in micro DC motors and DC gear motors with more than 14 years of manufacturing experience.
Q2: What payment methods do you support?
We accept multiple payment methods including online secure payments, credit cards (MasterCard, Visa, etc.), PayPal, and wire transfers (T/T).
Q3: Can you customize the motor parameters?
Yes, we can customize parameters such as operating voltage, nominal speed, current, torque, and shaft details according to your specific requirements.
Q4: What certifications do your micro motors have?
Our motors are certified with CE, FCC, ISO, and other relevant standard credentials. If you require other specific certificates, we can apply for them to support your compliance.
Q5: How is your quality control managed?
We have professional checking staff on every step of the production line. After assembly, all motors undergo comprehensive testing on advanced machines, including Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Test Machines, and Noise Testers.
Q6: What is the typical operating range of the M20 DC motor?
The typical operating voltage range of the M20 micro DC motor is 1.5V to 4.0V DC. It is optimized for low-voltage, high-efficiency micro applications.
