| PMDC MOTOR Technical Data | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | Rated Voltage (V) | No-Load | Rated | Stall | |||||||
| Operating Range | Nominal | Speed | Current | Speed | Current | Torque | Power | Current | Torque | ||
| RPM | A | RPM | A | mN.m / gf.cm | W | A | mN.m / gf.cm | ||||
| RS-390SH | 20156R | 6.0~12.0 | 12VDC | 5000 | 0.08 | 4243 | 0.33 | 6.07 / 61.9 | 2.72 | 2.22 | 42.2 / 430 |
| 2975 | 6.0~12.0 | 12VDC | 12000 | 0.29 | 10165 | 0.33 | 5.75 / 58.6 | 1.31 | 8.9 | 80.4 / 820 | |
| RS-395SH | 15130 | 6.0~12.0 | 12VDC | 3650 | 0.66 | 2949 | 0.25 | 5.83 / 59.5 | 1.8 | 1.06 | 30.4 / 310 |
| 15100R | 6.0~24.0 | 24VDC | 10300 | 0.07 | 8893 | 0.38 | 7.09 / 72.3 | 6.68 | 2.66 | 54.9 / 560 | |

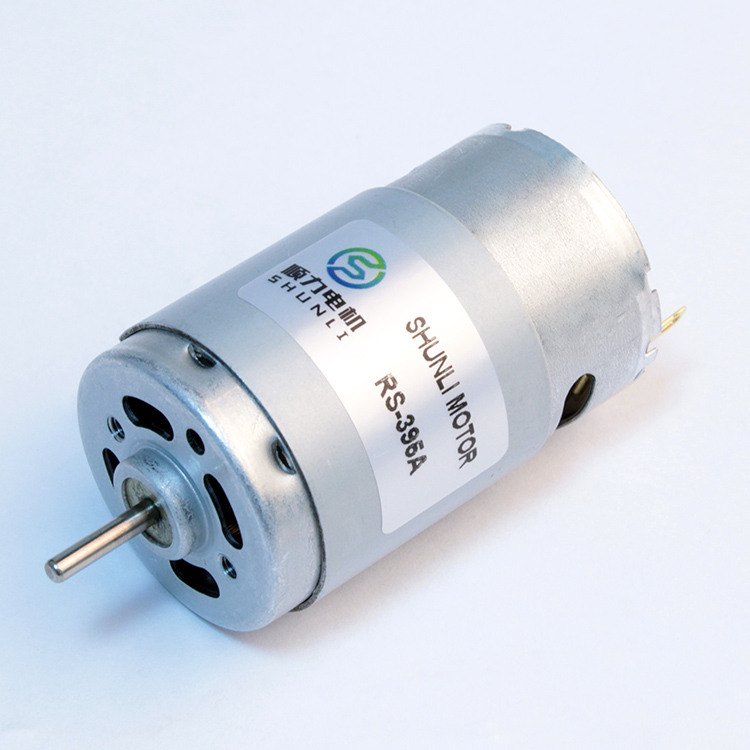

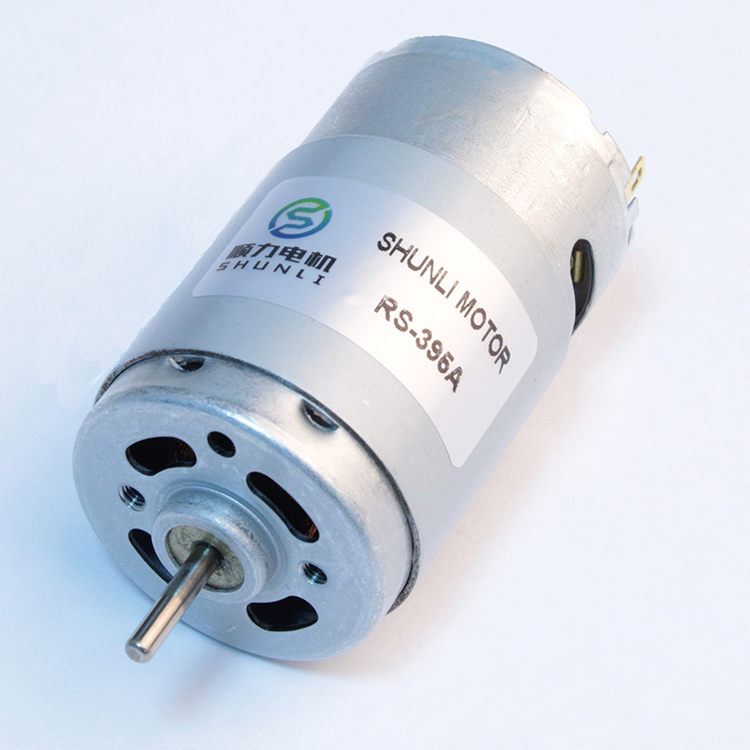

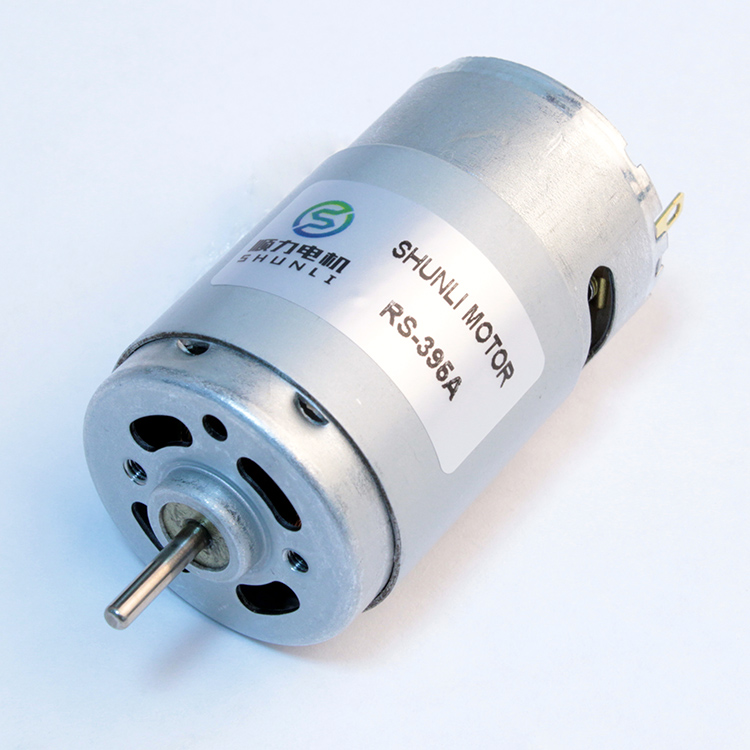

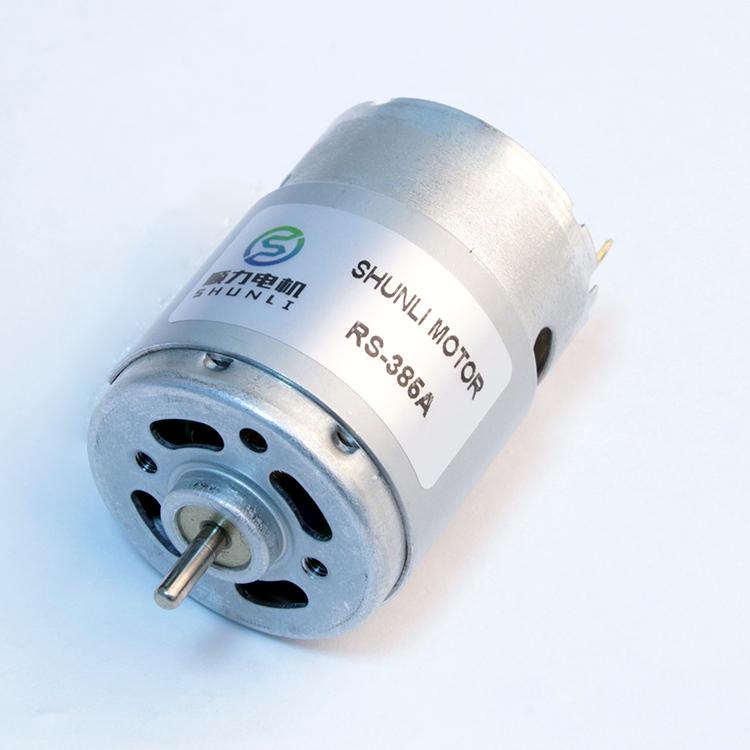

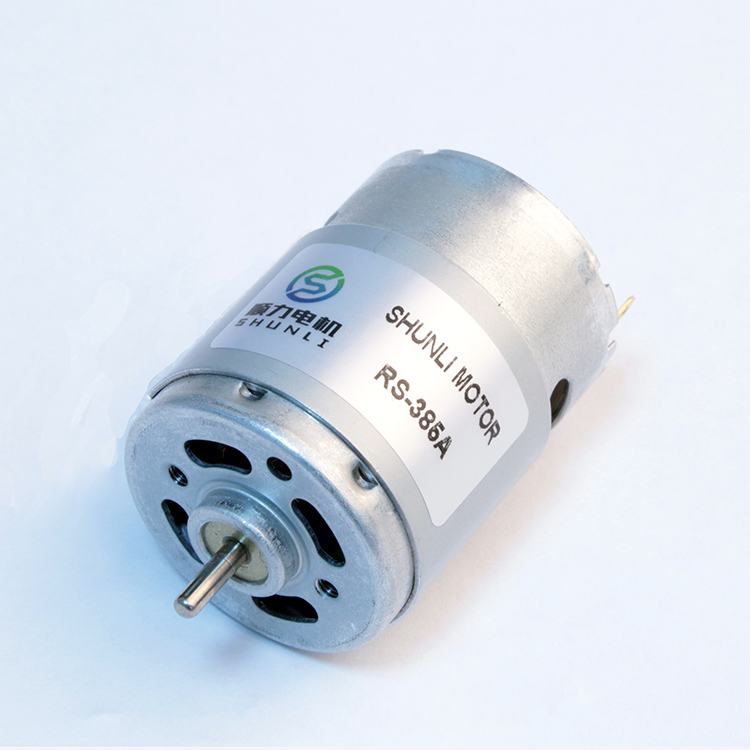

The RS-380, RS-385, and RS-395 series micro DC motors typically operate within a range of 12V to 24V DC, allowing high speed performance up to 13,000 RPM depending on the model and technical specification.
Yes, the length and shape of the output shaft can be customized according to your specific requirements to fit perfectly inside your gearboxes or application housings.
These high-speed, large-torque DC motors are extensively used in electric drills, garden power tools, dynamic toy models, domestic smart appliances, and other precise driving configurations requiring robust performance.
While both model families cover compact profiles, the RS-395SH is engineered for voltages up to 24VDC showing a balanced torque output, whereas variations of the RS-390SH specialize in high-efficiency, high-RPM output (up to 12,000 RPM at 12VDC).
Yes, our drawing and datasheet specifications show average reference values. Custom winding specifications, nominal speeds, and voltage properties are configurable based on client requirements.
