Zonix Motor
Zonix Motor
| Ratio | 3.4K - 5184K |
|---|---|
| Max. Rated Torque | 0.5~120Kgf.cm |
| Max. Gear Breaked Torque | 180 Kgf.cm |
| Gearbox Efficiency | 45%~95% |
| Gearmotor Model | Ratio | Rated Voltage (V) | No-Load | Rated | Stall | ||||
|---|---|---|---|---|---|---|---|---|---|
| Speed | Current | Speed | Current | Torque | Current | Torque | |||
| RPM | mA | RPM | mA | mN.m / gf.cm | mA | N.m / Kgf.cm | |||

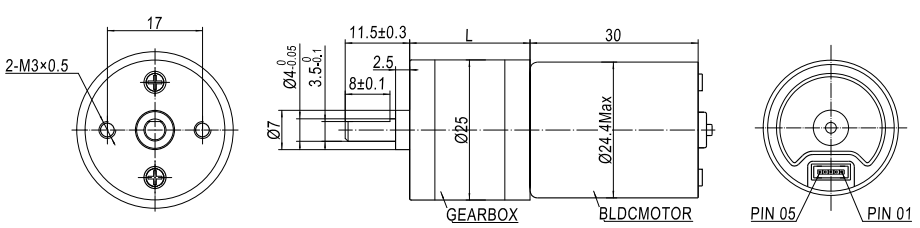

| GM25AMBL2430-217K | 1 : 217 | 12 VDC | 18 | ≤ 120 | 15 | ≤ 200 | 0.45 / 4.5 | ≤ 950 | 0.21 / 2.1 |

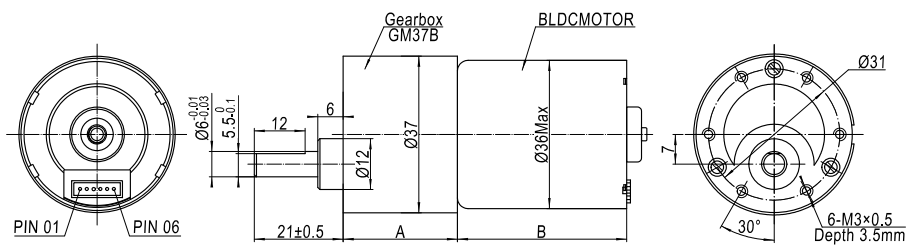

| GM37BMBL3657-113QK | 1 : 113 | 24 VDC | 58 | ≤ 400 | 48.5 | ≤ 1400 | 3.0 / 30 | ≤ 7000 | 10 / 100 |

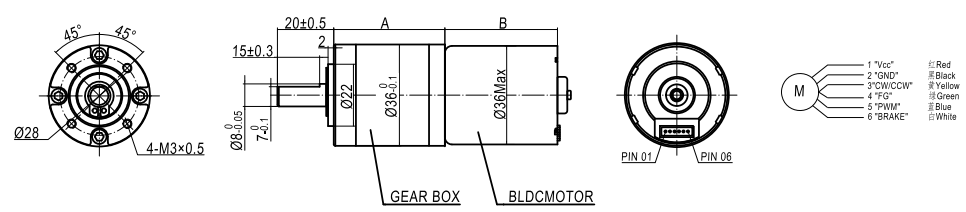

| GMP36MBL3640-27K | 1 : 27 | 24 VDC | 185 | ≤ 300 | 150 | ≤ 750 | 0.45 / 4.5 | ≤ 3000 | 2.25 / 22.5 |

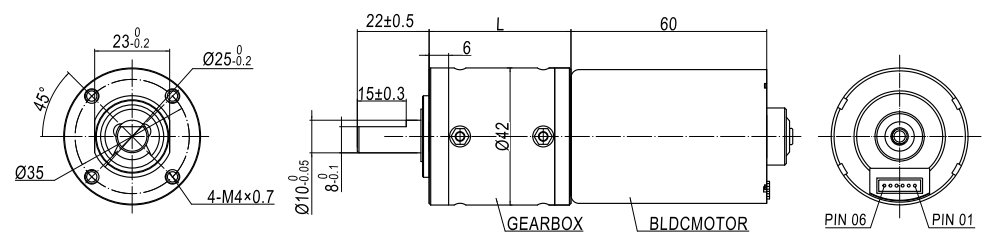

| GMP42MBL4260-325K | 1:245 | 24 VDC | 10 | ≤ 300 | 8 | ≤ 1200 | 6N.M / 60KG.CM | ≤ 4800 | 20 / 200 |
Established in 2005, our factory is a high-tech enterprise integrating the research, development, production and sales of various kinds of micro DC motor, geared motor, planetary geared motor, shade pole geared motor and special gearbox motor. Products are widely used in automobiles, communications equipment, smart home, medical equipment, intelligent security, household appliances, western kitchen equipment, machinery and electronics and other high-end transmission structures. Our products are exported to more than 50 countries and regions at home and abroad.

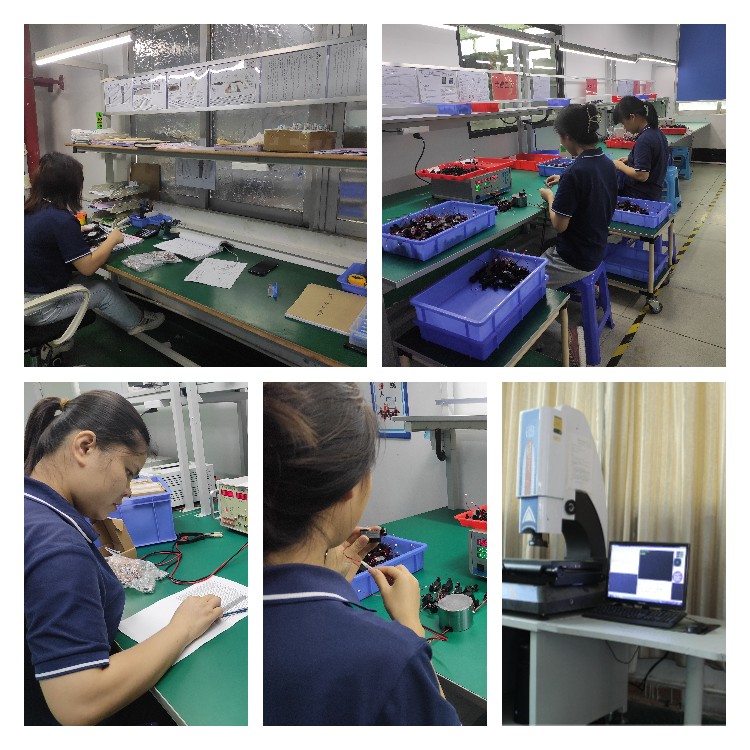

In order to confirm quality, from the raw material receipt to shipment, every step of the way is carefully checked. Quality is the basis of our development.
