Zonix Motor
Zonix Motor

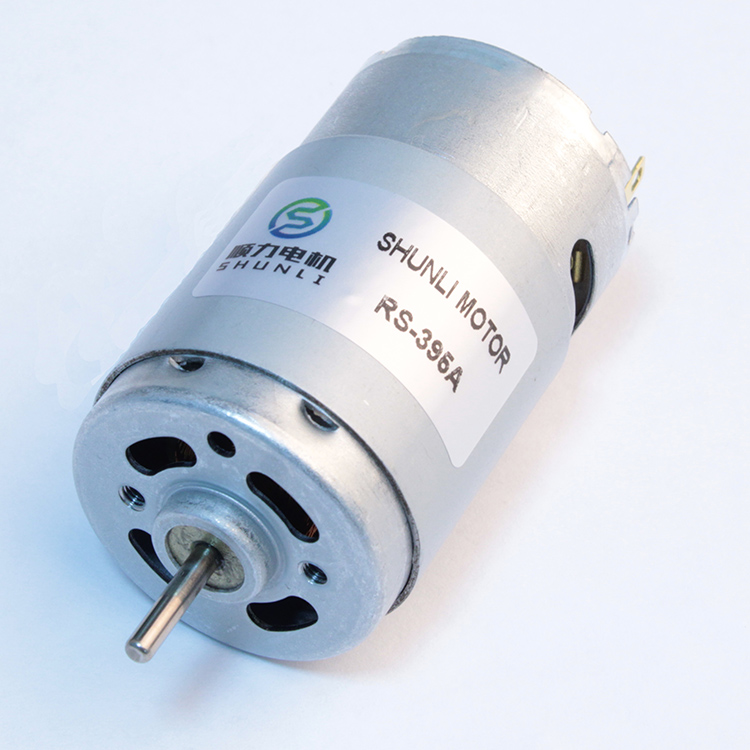

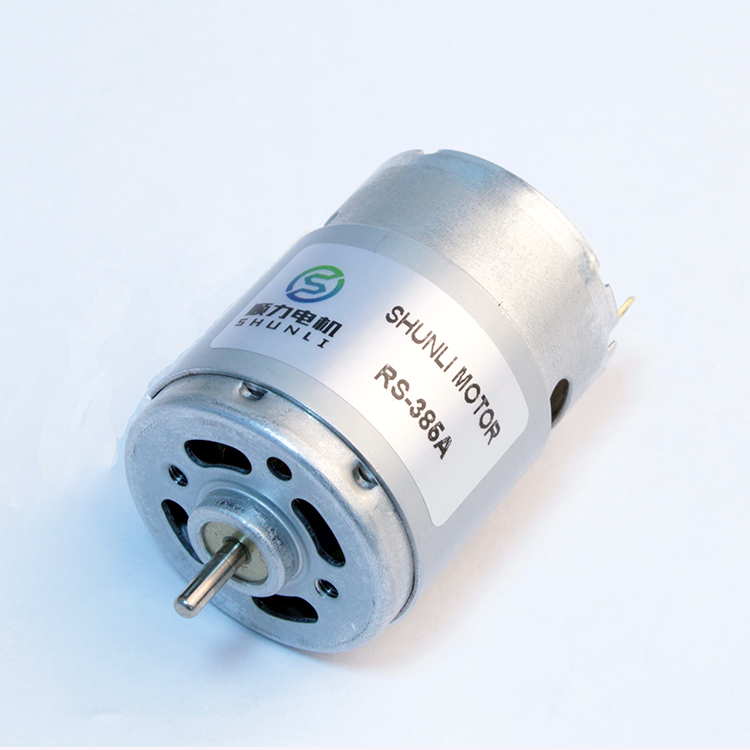

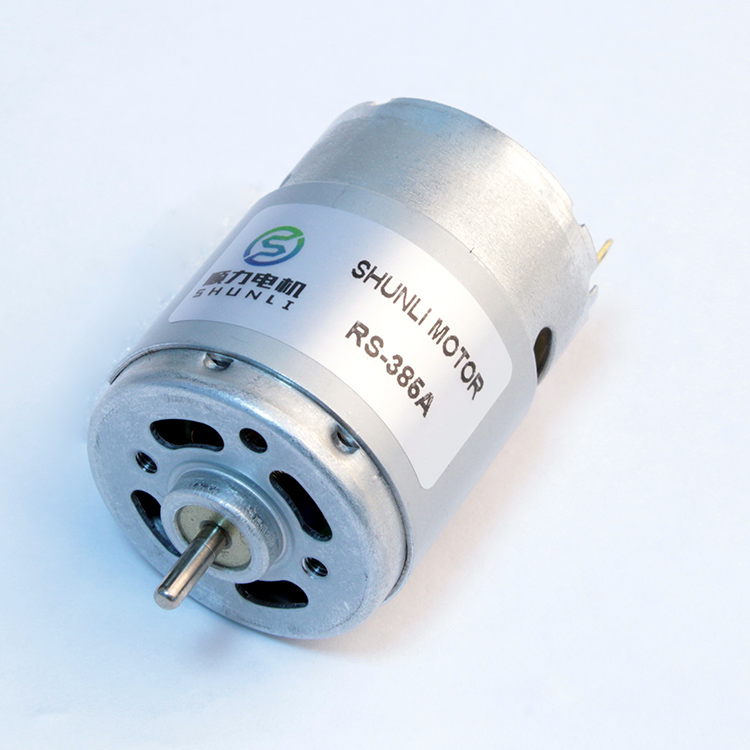

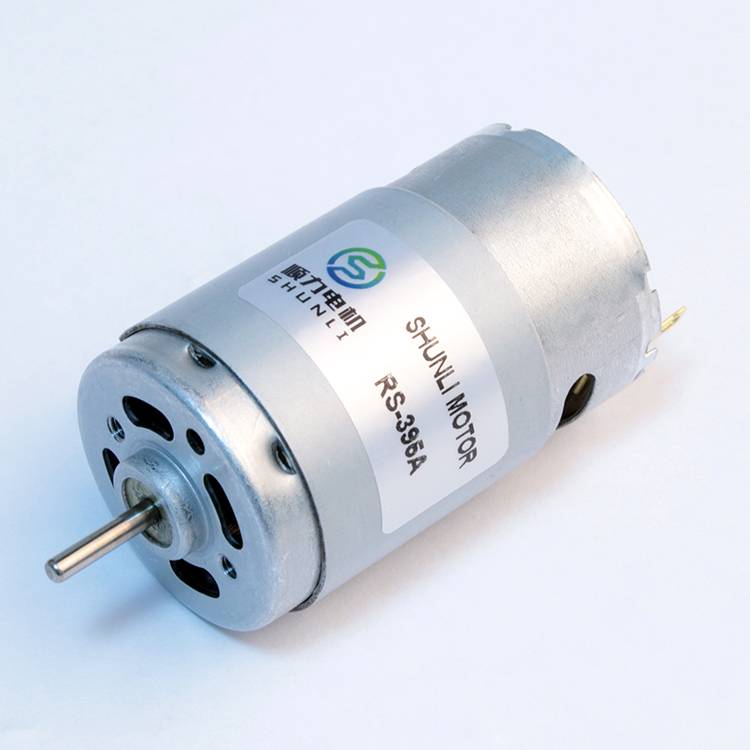

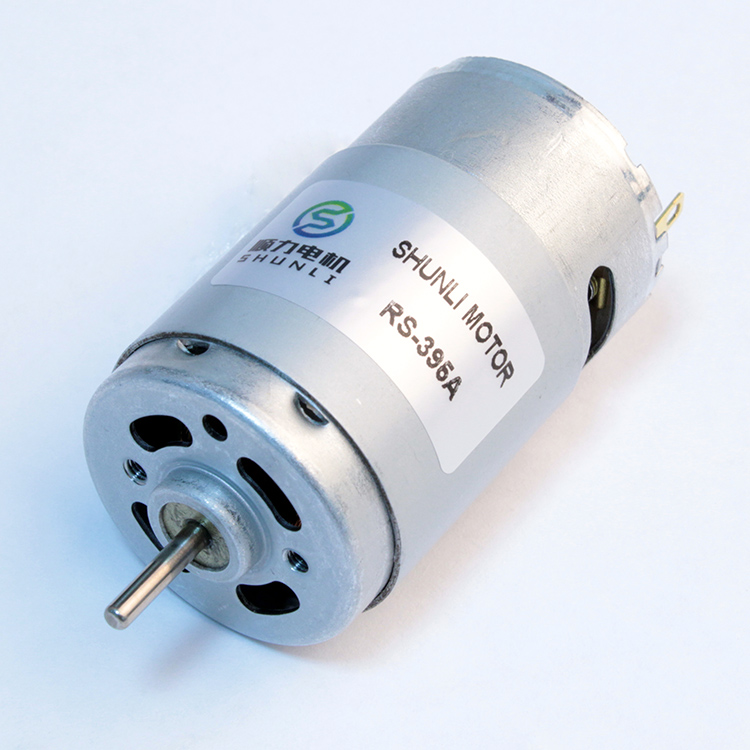

| PMDC MOTOR Technical Data | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | Rated Voltage (V) | No-Load | Rated | Stall | |||||||
| Operating Range | Nominal | Speed | Current | Speed | Current | Torque | Power | Current | Torque | ||
| RPM | A | RPM | A | mN.m / gf.cm | W | A | mN.m / gf.cm | ||||
| RS-390SH | 20156R | 6.0~12.0 | 12VDC | 5000 | 0.08 | 4243 | 0.33 | 6.07/61.9 | 2.72 | 2.22 | 42.2/430 |
| 2975 | 6.0~12.0 | 12VDC | 12000 | 0.29 | 10165 | 0.33 | 5.75/58.6 | 1.31 | 8.9 | 80.4/820 | |
| RS-395SH | 15130 | 6.0~12.0 | 12VDC | 3650 | 0.66 | 2949 | 0.25 | 5.83/59.5 | 1.8 | 1.06 | 30.4/310 |
| 15100R | 6.0~24.0 | 24VDC | 10300 | 0.07 | 8893 | 0.38 | 7.09/72.3 | 6.68 | 2.66 | 54.9/560 | |
What is the typical operating voltage range for the 390 DC Motor?
The 390 DC motor series typically operates within a voltage range of 6.0V to 12.0V DC. However, certain model configurations can operate up to 24.0V DC depending on project requirements.
Can the motor shaft dimensions be customized?
Yes. The length and shape of the output shaft can be customized according to your mechanical specifications. Please reach out to state your custom configuration demands.
What are the primary applications for this PMDC motor?
This PMDC motor is highly versatile and is widely used for machine cooling fans, home appliances, personal care electronics, smart office appliances, and various low-noise high-speed mechanical drives.

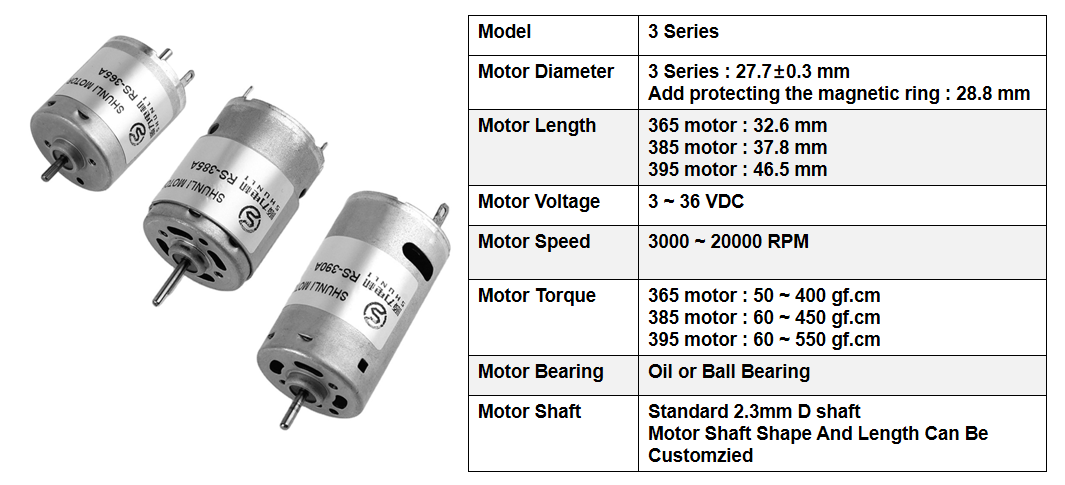

How do the RS-365, RS-385, and RS-395 motor sizes differ?
While they belong to similar PMDC families, they differ in body length, power outputs, and torque ratings. The RS-395 is typically longer and offers higher torque compared to the RS-365 and RS-385 models.
What is the typical speed output of the RS-390SH motor?
Under no-load conditions at 12V DC, the RS-390SH can achieve speeds ranging from 5,000 RPM up to 12,000 RPM, depending on the specific winding model chosen (such as the 20156R or the 2975 models).
