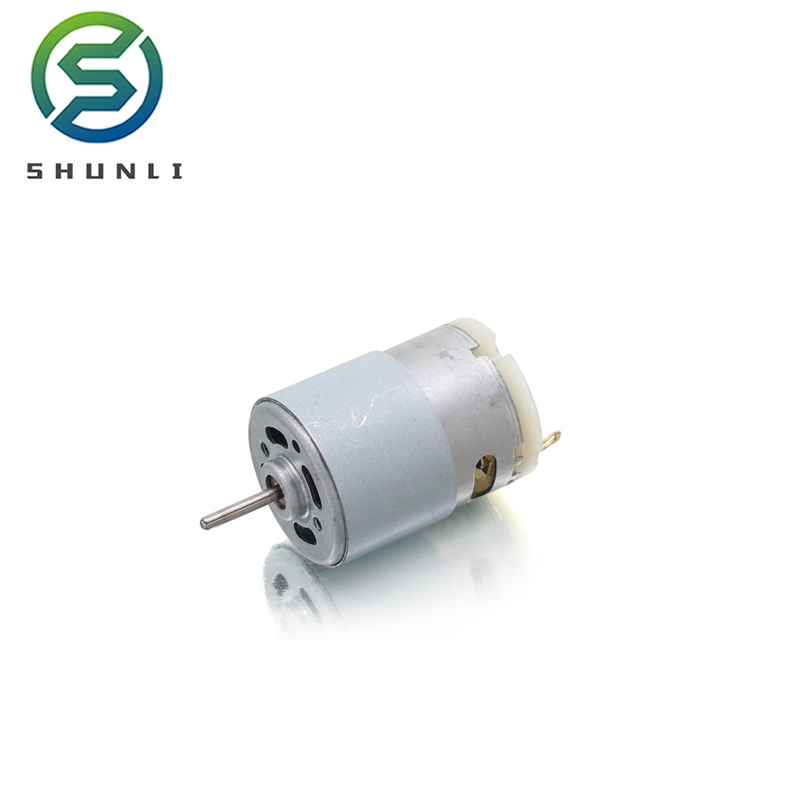

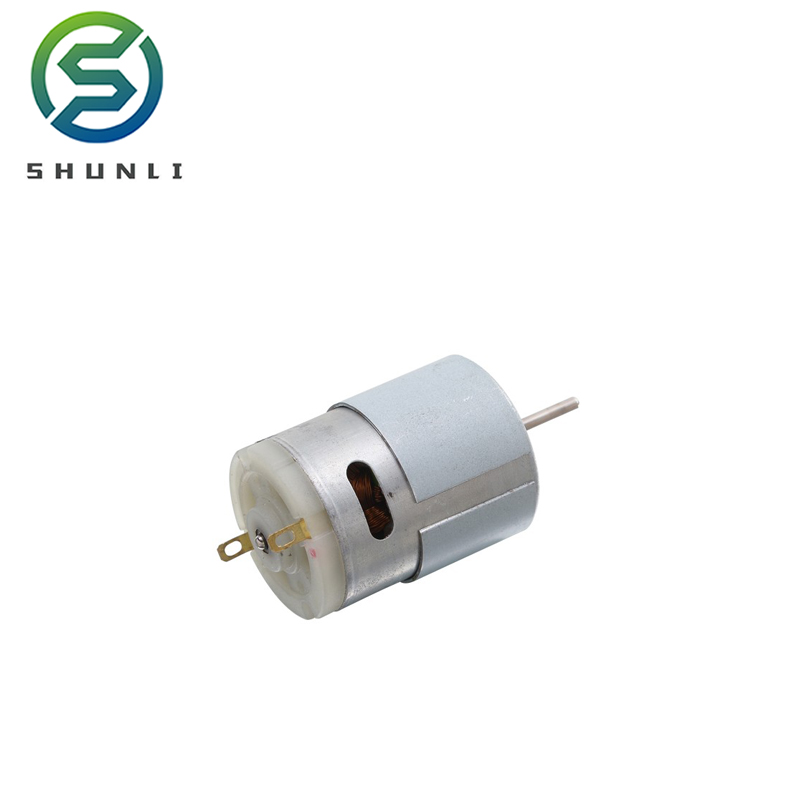

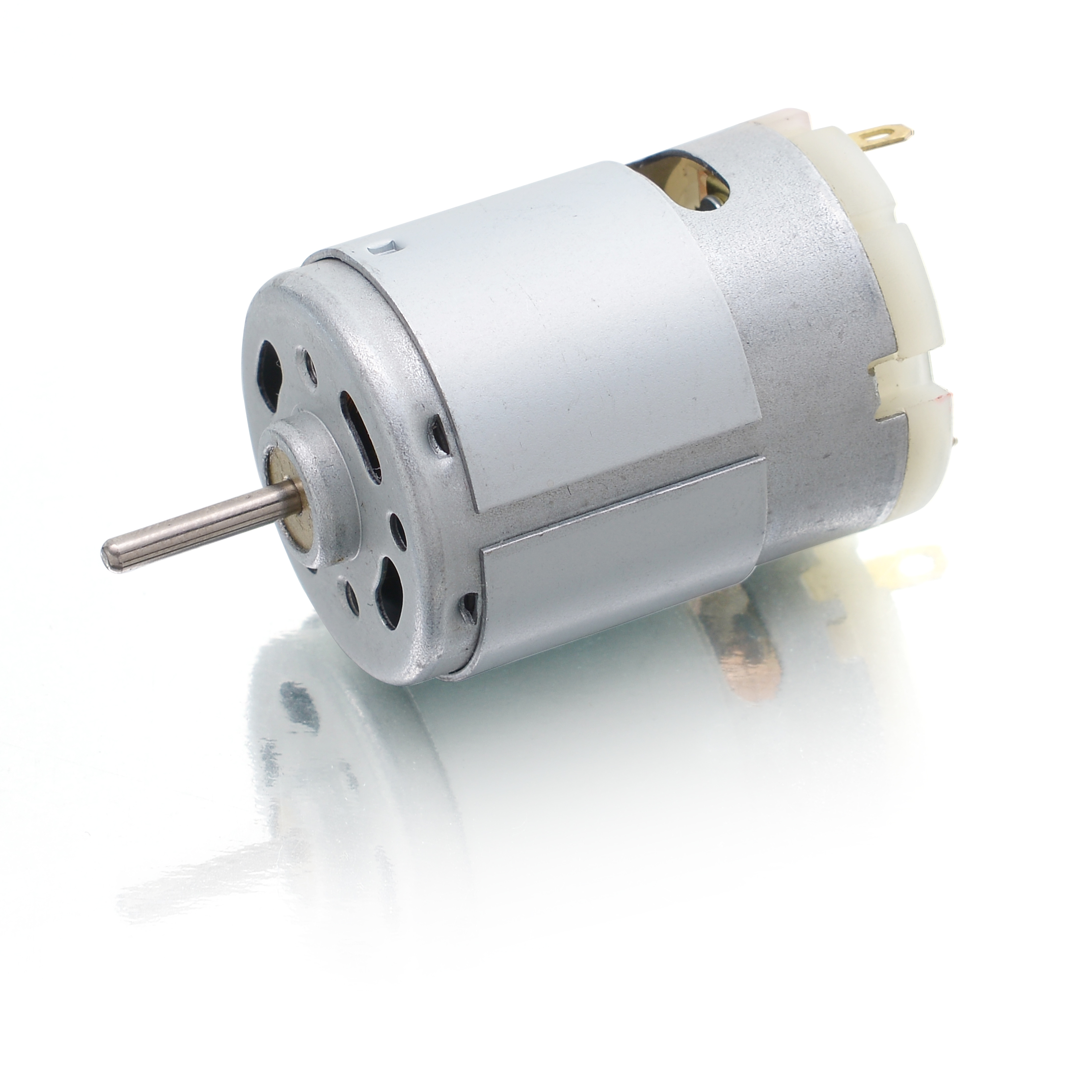

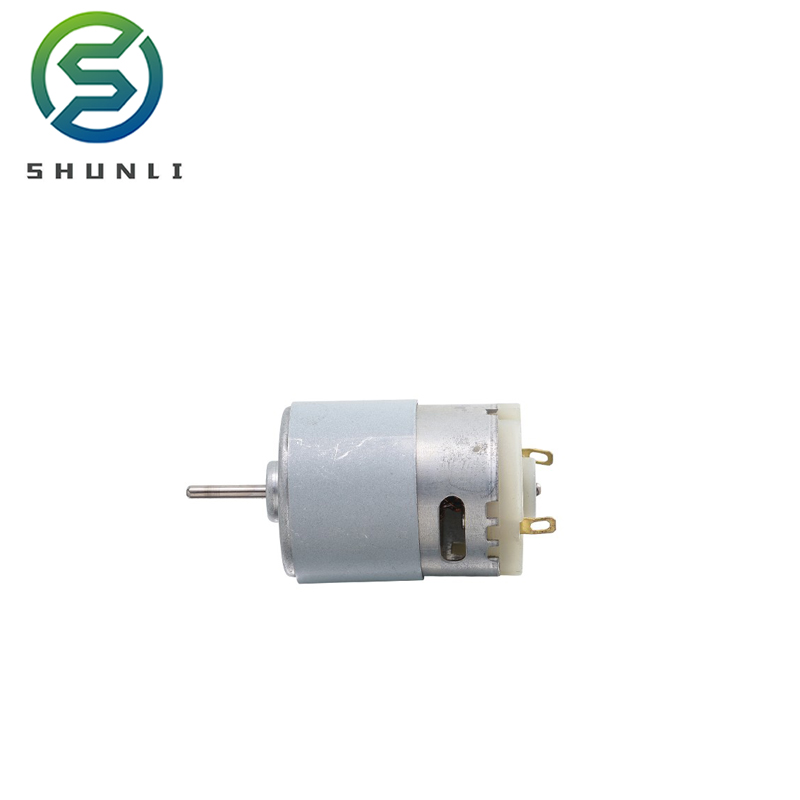

High Efficiency 9000 RPM Brushless DC Micro Motor 6-24V for Global B2B Procurement

Promotion

Product Description

12v DC Motor Product Technical Dimension

PMDC MOTOR Technical Data
Model		Rated Voltage (V)		No-Load		Rated				Stall
Model		Operating Range	Nominal	Speed (RPM)	Current (A)	Speed (RPM)	Current (A)	Torque (mN.m / gf.cm)	Power (W)	Current (A)	Torque (mN.m / gf.cm)
RS-380SH	4052	3.0~6.0	4.8VDC	7800	0.32	6701	1.95	9.9/101	6.98	11.9	70.6/720
RS-380SH	3557	6.0~12.0	12VDC	21200	0.44	18367	2.85	11.26/114.9	21.68	18.5	84.3/860

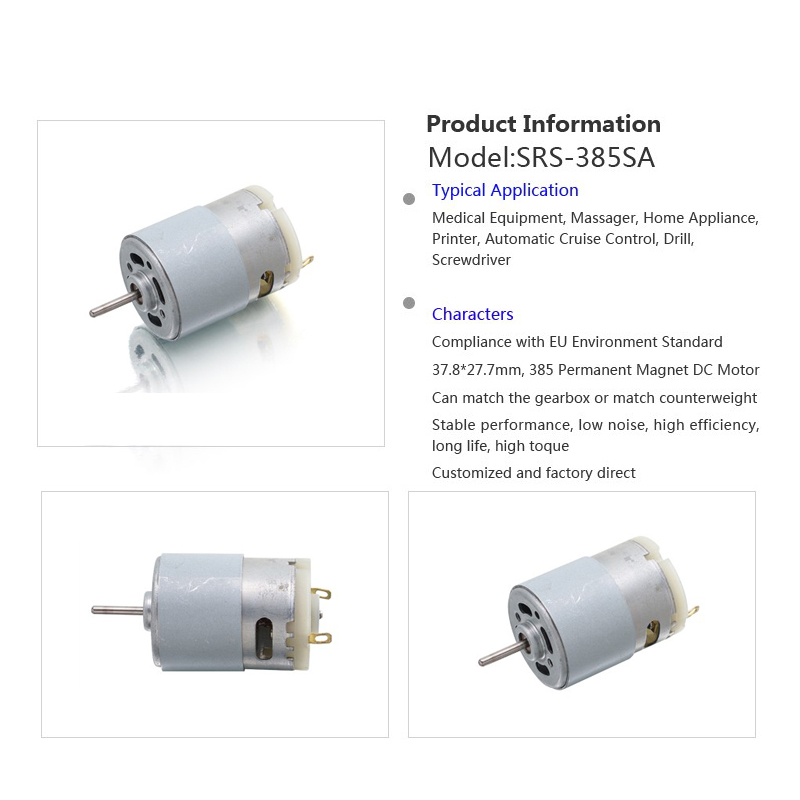

RS-385SH	17110	6.0~24.0	24VDC	11000	0.15	9034	0.69	10.7/109	10.12	3.16	59.8/610
RS-385SH	2267	6.0~12.0	12VDC	10000	0.17	8340	0.85	7.5/76.5	6.53	4.29	45/459

Application

About The Enterprise

Established in 2005, the enterprise is a high-tech enterprise integrating the research, development, production and sales of various kinds of micro DC motor, geared motor, planetary geared motor, shade pole geared motor and special gearbox motor. Products are widely used in automobiles, communications equipment, smart home, medical equipment, intelligent security, household appliances, western kitchen equipment, machinery and electronics and other high-end transmission structures. The products are exported to more than 50 countries and regions at home and abroad.

Production Process

Certifications

Frequently Asked Questions

Are you a trading company or manufacturer?

We are a factory. We specialize in micro DC motors and DC gear motors for more than 14 years.

What is the payment term for new customers?

We can draw up an online assurance order for our new customers, which can be paid online via Credit Card, Visa, etc. Customers can also pay with PayPal or T/T.

I cannot find a suitable motor on your website, can you customize the motor for me?

Yes, we can customize a suitable motor according to our customers' specific requirements.

Do you have certificates for the motors?

Yes, we have CE, FCC, ISO, etc. If you have other specific certificate requirements, we can apply for them for you.

How is your Quality Control?

We have professional checking staff on every production line process. After finishing the motor assembly, we use dedicated quality machines to test the motors, such as Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Test Machines, and Noise Testers.
