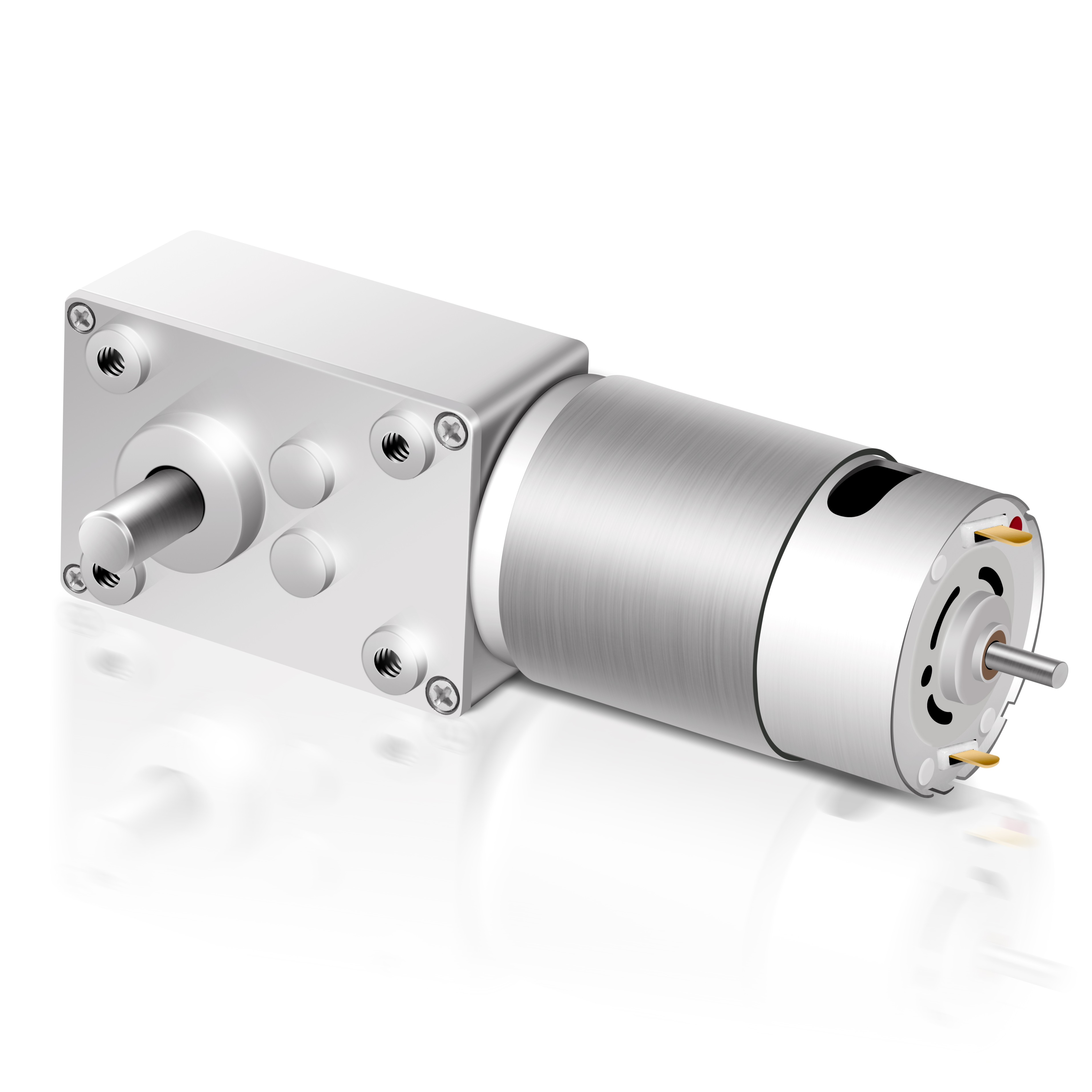

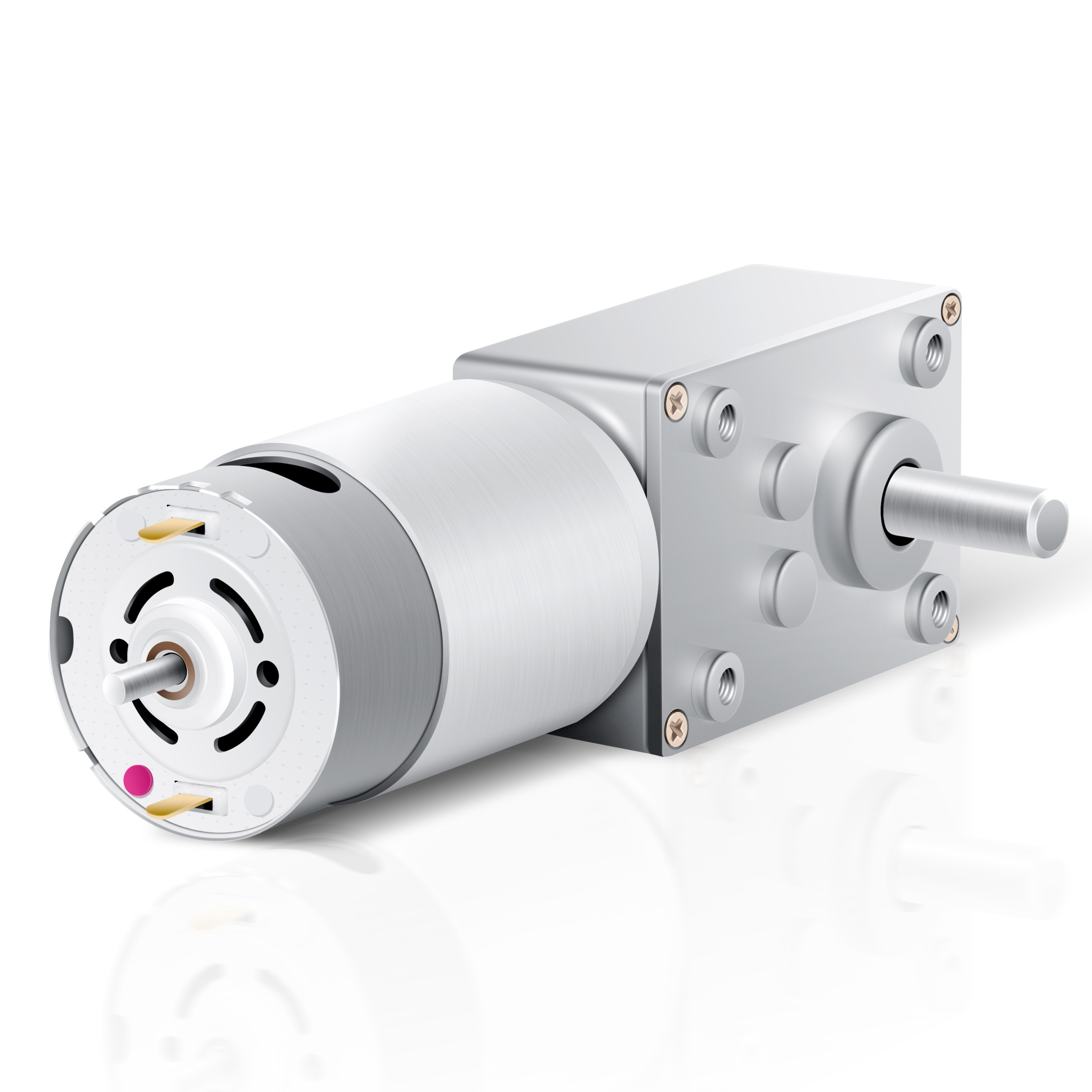

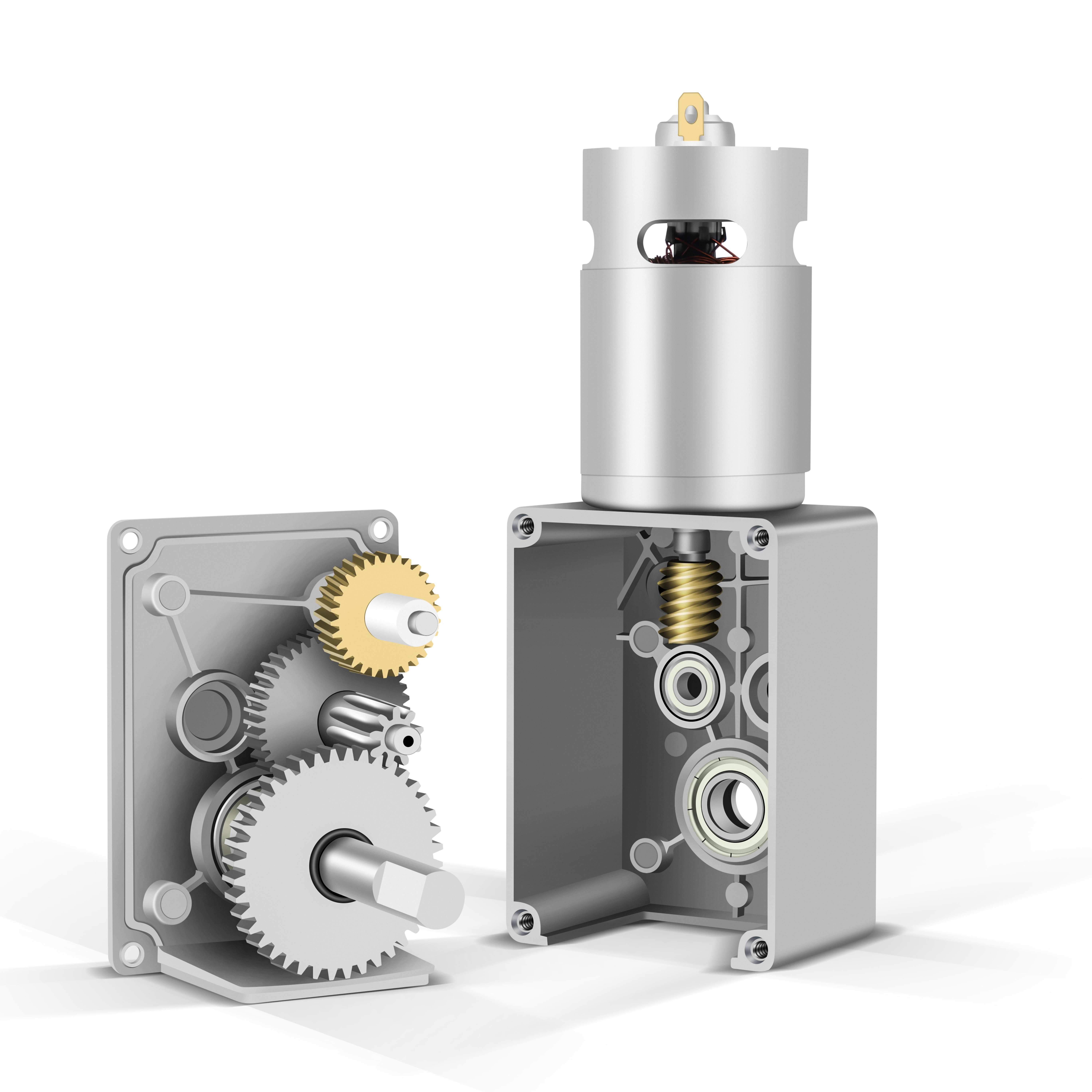

Factory 0.8nm Worm Gear Motor Brush Brushless Worm Gear Motor For For 3d Printing Pen
Factory 0.8nm Worm Gear Motor Brush Brushless Worm Gear Motor For For 3d Printing Pen
Factory 0.8nm Worm Gear Motor Brush Brushless Worm Gear Motor For For 3d Printing Pen
Factory 0.8nm Worm Gear Motor Brush Brushless Worm Gear Motor For For 3d Printing Pen
Factory 0.8nm Worm Gear Motor Brush Brushless Worm Gear Motor For For 3d Printing Pen
1 / 5
Factory 0.8nm Worm Gear Motor Brush Brushless Worm Gear Motor For For 3d Printing Pen
Factory 0.8nm Worm Gear Motor Brush Brushless Worm Gear Motor For For 3d Printing Pen
Factory 0.8nm Worm Gear Motor Brush Brushless Worm Gear Motor For For 3d Printing Pen
Factory 0.8nm Worm Gear Motor Brush Brushless Worm Gear Motor For For 3d Printing Pen
Factory 0.8nm Worm Gear Motor Brush Brushless Worm Gear Motor For For 3d Printing Pen

Factory 0.8nm Worm Gear Motor Brush Brushless Worm Gear Motor For For 3d Printing Pen

Send Inquiry

Product Description

Promotion

Worm Gear Motor For 3D Printing Pen
Worm Gear Motor For 3D Printing Pen Specifications

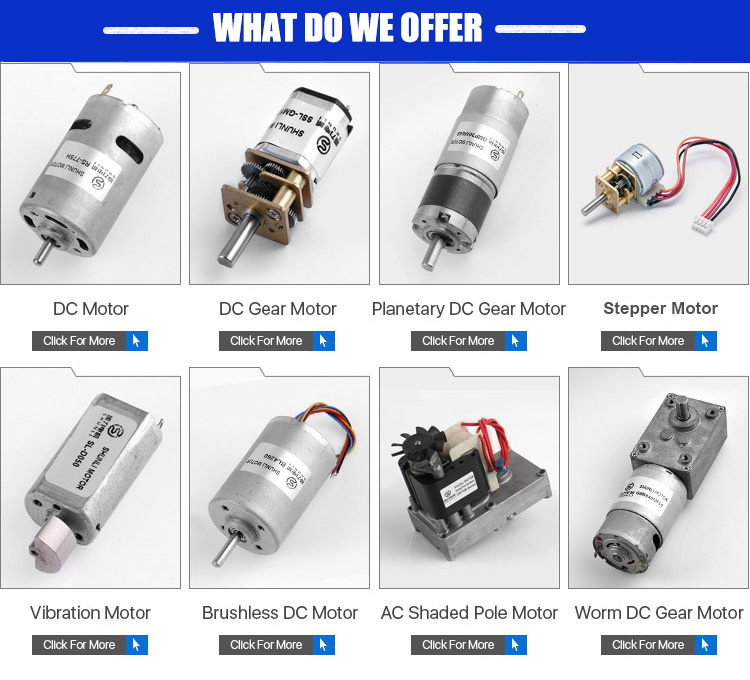

Worm Gear Motor Selection Guide

Product Description

Product Details

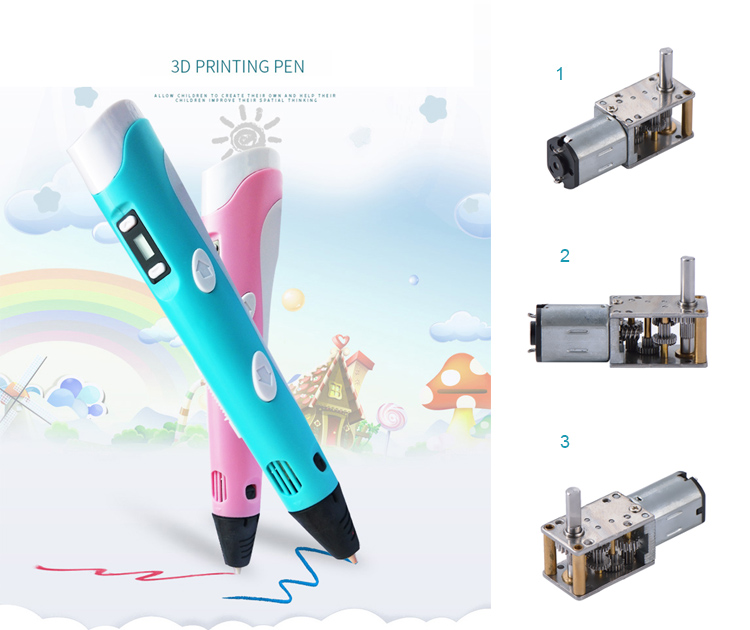

Product Details View
Gearbox Technical Data
Ratio 41K / 82K / 95K / 190K / 219K / 438K / 504K / 1007K
Max. Rated Torque 300~800 gf.cm
Max. Gear Breaked Torque 1000~3000 gf.cm
Gearbox Efficiency 12%~35%
Gearmotor Technical Data
Gearmotor Model Ratio Rated Voltage (V) No-Load Rated Stall
Speed Current Speed Current Torque Current Torque
RPM mA RPM mA mN.m / gf.cm mA mN.m / gf.cm
GM1220EMN20-95K 1 : 95 4.5 VDC 145 ≤ 70 122 ≤ 200 8 / 80 ≤ 700 75 / 750
GM1220EMN30-1007K 1 : 1007 12 VDC 25 ≤ 90 22 ≤ 230 120 / 1200 ≤ 400 420 / 4200

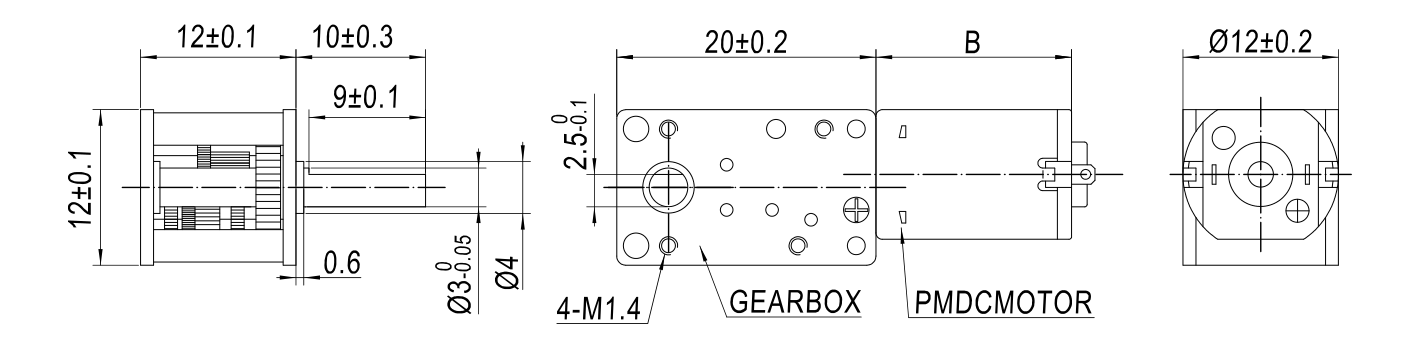

Gearmotor Dimensions Drawing
PMDC MOTOR Technical Data
PMDC MOTOR Model Length "B"(mm) Rated Voltage (V) No-Load Rated Stall
Speed Current Speed Current Torque Current Torque
RPM mA RPM mA mN.m / gf.cm mA mN.m / gf.cm
SL-N20 04514000 15 4.5 VDC 14000 ≤ 40 12000 ≤ 130 0.25 / 2.5 ≤ 650 1.5 / 15
SL-N30 1225400 20 12 VDC 25400 ≤ 50 22600 ≤ 170 0.5 / 5 ≤ 380 4.2 / 42

Application

Product Applications Overview

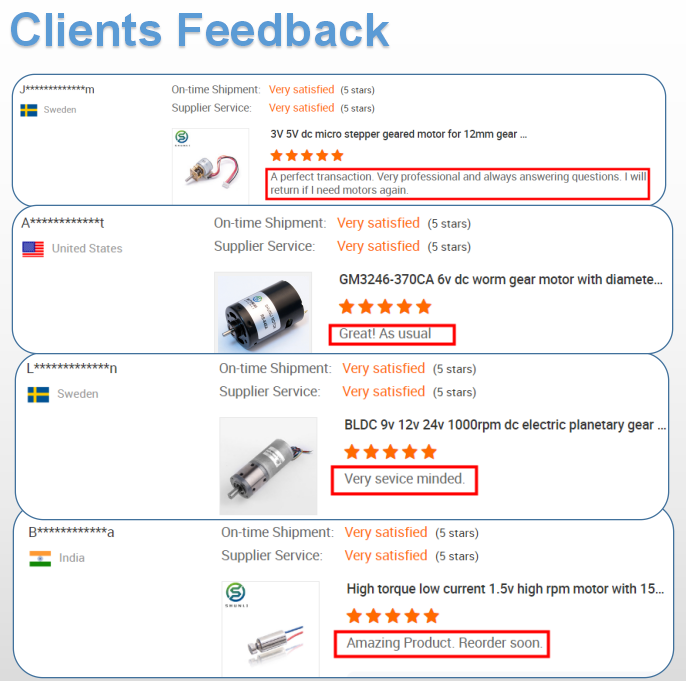

Customer Evaluation

Customer Evaluation Feedback

Certification

Quality Certificate Part 1
Quality Certificate Part 2

Our Company

Established in 2005, the enterprise integrates the research, development, production and sales of various kinds of micro DC motor, geared motor, planetary geared motor, shade pole geared motor and special gearbox motor. Products are widely used in automobiles, communications equipment, smart home, medical equipment, intelligent security, household appliances, western kitchen equipment, machinery and electronics and other high-end transmission structures, products are exported to more than 50 countries and regions at home and abroad.

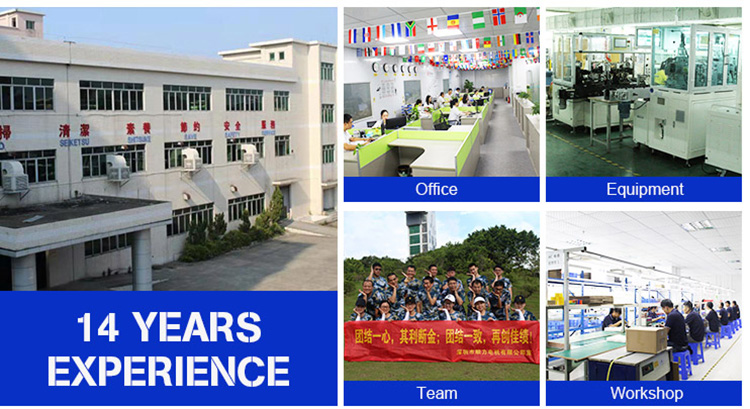

Factory Environment
Advanced Equipment
Production Line

FAQ

Are you trading company or manufacturer?
We're factory. We specialize in micro dc motor and dc gear motor for more than 14 years.
What is the payment term for a new customer?
We can draw up an Assurance Order Online for our new customer, which can pay online with Master Card, Visa, etc. Customer also can pay with PayPal or TT etc.
I can't find a suitable motor on your website, can you customize the motor for me?
Yes, we can customize a suitable motor according to our customer's requirements.
Do you have certificates for the motors?
Yes, we have CE, FCC, ISO, etc. If you have the other certificates requirement, we can apply it for you.
How is your Quality Control?

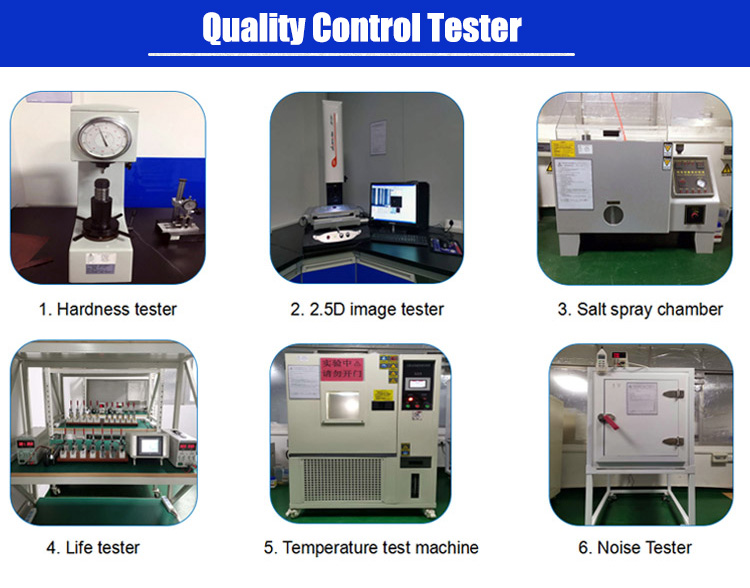

We have professional checking staff on every production line process. After finishing the whole motor, we have the entire quality machine to test the motor, such as Hardness Tester, 2.5D Image Tester, Salt Spray Chamber, Life Tester, Temperature Test Machine, and Noise tester etc.
What is the typical lead time for customized orders?
Lead times for customized motors generally depend on design complexity and production scheduling. Typical timelines range from 2 to 4 weeks. Please reach out to define your specific requirements.
